Nordhavn 96

$8,995,000 USD

Year2017
Length29.26
Beam7.32m (24ft)
Draft2.49 m (8 ft 2 in)
Cabins5

Nordhavn 96| $8,995,000 USD

Overview

In 2017, Pacific Asian Enterprises (PAE) expanded their Nordhavn line with the addition of the Nordhavn 96. Being well received by the exploration yacht community, the Nordhavn 96 won the 2017 International Yacht and Aviation Award. This new design bridged the gap between the large cruising exploration yacht and super-yacht categories. She was designed for the yachting enthusiast who seeks the super-yacht comfort and style in a boat that is still able to be managed with no or minimal crew, and travel big open oceans. The 96 series is based on the hull of the very successful Nordhavn 86, while incorporating a larger cockpit, lazarette, and better crew space below deck. The greater volume is also felt on the main deck level, in the dining and galley areas, and on the pilothouse deck with a large upper master stateroom. The greater length also allows for a more spacious fly bridge with hot tub. Lacey Kay was built by her current owner, making frequent trips to the yard during the build process. He opted for the additional fuel tanks, giving her an aggregate capacity of 9,575 gallons. With her increased waterline hull length, her fuel burn was actually slightly reduced from the 86. At her most efficient cruise speed of 9 knots, she burns about 10 gallons per hour per side, plus 5 gallons for the house generator, giving her an approximate 4,000 NM range; well enough for a Pacific crossing. According to Jeff Leishman, PAE's Chief of Design, extending her hull length has allowed Nordhavn to enhance the performance of, and increase stability and comfort in this well-proven hull design.

Specifications

Make & Model: Nordhavn 96

Vessel Name: Lacey Kay

Length: 29.26

Year: 2017

Location: Rose Bay NSW

Country: New South Wales

Designer: Nordhavn Yachts

Builder: Nordhavn Yachts

Decks Material: Fibreglass

Hull Material: Fibreglass/GRP

Hull Material Extra: Full displacement hull designed for ocean passages

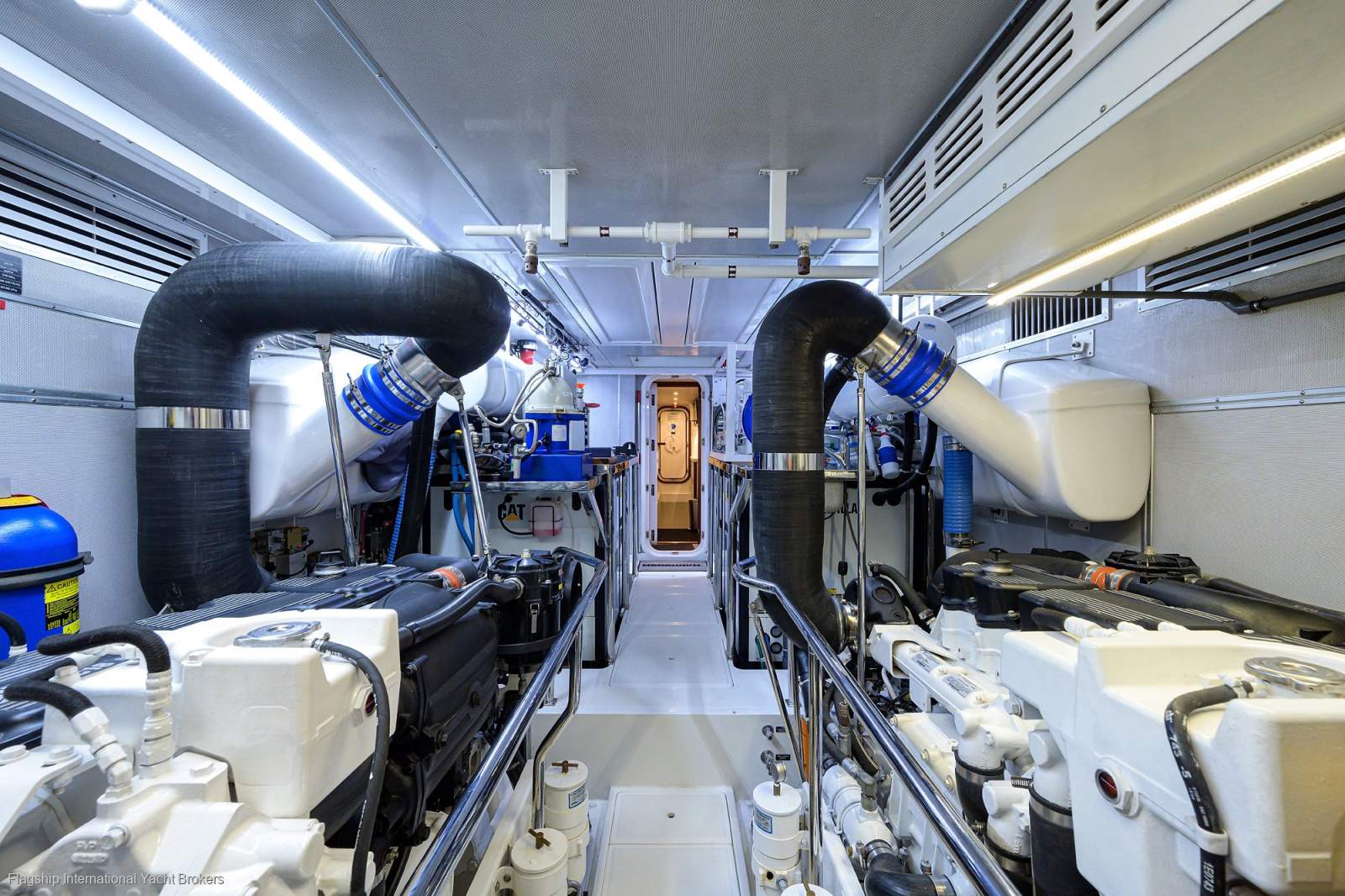

Engine: Twin Caterpillar C18 ACERT diesel engines

Genset: Twin Northern Lights 55 kW generators

Fuel Capacity: 9,575 gallons (approx. 36,245 litres)

Water Capacity: 985 gallons (3,729 liters)

Beam: 7.32m (24ft)

Draft: 2.49 m (8 ft 2 in)

Weight: Approx. 181.44 metric tons (400,000 lbs)

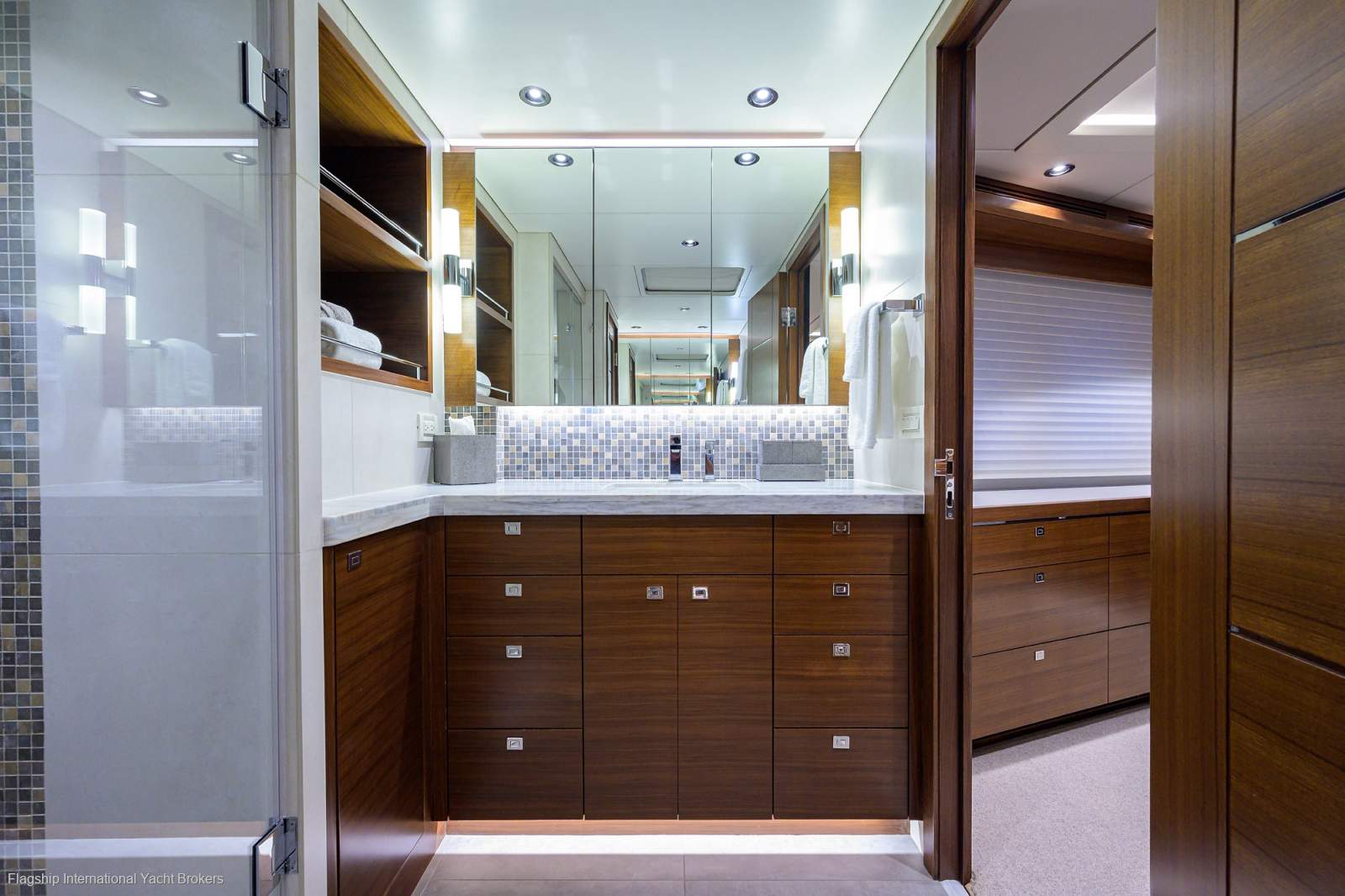

Shower: Five guest staterooms is equipped with its own en-suite bathroom, which includes a shower.

Toilet: Each cabin is equipped with its own en-suite bathroom, providing privacy and convenience for all guests and crew members.

Dinghy: Custom tender stored on the upper deck

Covers: Protective covers for exterior seating and helm stations Covers for tenders and equipment stored on deck UV covers or shades for windows or flybridge areas

Accomodation: Guest Capacity: Up to 9 guests

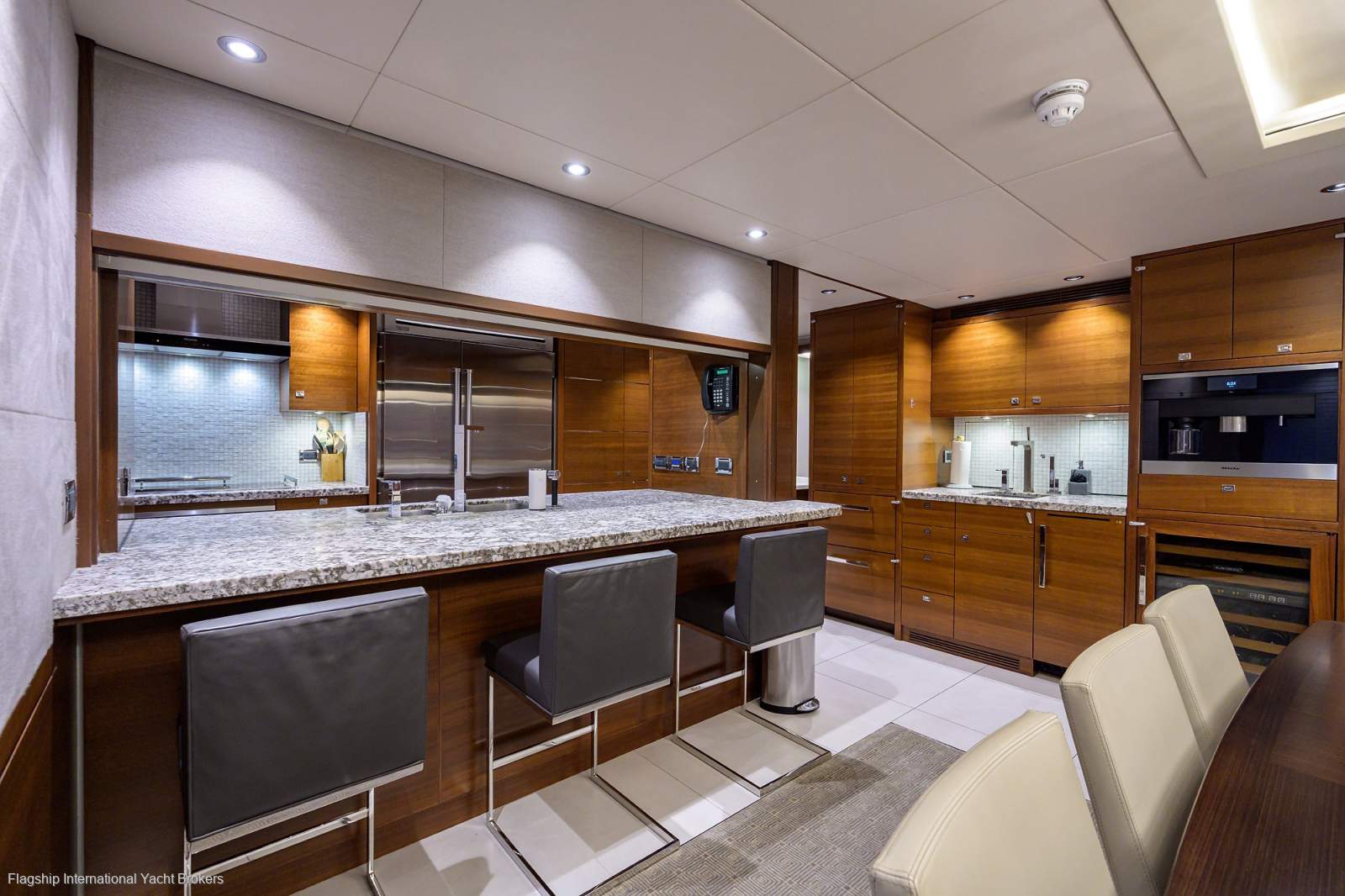

Galley: The galley is designed for both functionality and comfort, featuring modern appliances and ample storage to support extended voyages. It includes a coffee machine, wine cooler, ice maker, trash compactor, full-sized dishwasher, oven, hob, and extractor fan, mirroring the capabilities of a high-end residential kitchen.

Refrigeration: Significant refrigeration capacity, including units integrated into the cockpit bar area.

Ground Tackle: Anchor Windlasses: Two Maxwell VWC 6000 hydraulic windlasses with controls located in the pilothouse and on the foredeck, each equipped with chain counters. Anchors: Two 300 lb. Stainless steel anchors. Anchor Chains: Port side features 700 feet of 5/8" stud link chain; starboard side has 400 feet of the same. Mooring Capstans: Two Maxwell VC 3000 electric mooring capstans located at the stern. Anchor/Chain Washes: High-capacity systems installed for both anchors.

Electrics: Universal AC electrical system (shore power adaptability)

Engine Make: Caterpillar

Horse Power: 715 hp each (1,430 hp total)

Fuel Type: Diesel

Number Engines: 2

Engine Hours: Approx. 2,330 hours

Engine Hours2: Approx. 2,330 hours

Fuel Consumption: Approx. 15-20 GPH at cruising speed

Max Speed: 12 knots

Cruise Speed: 10 knots

Propulsion: Shaft drive

Thrusters: Hydraulic bow and stern thrusters (ABT Trac)

Cabins: Guest Cabins: 5 staterooms Owner's Cabin: Upper deck owner's cabin VIP Suite: Full-beam VIP suite Convertible Cabins: 2 convertible doubles Crew Capacity: 5 crew members Crew Cabins: 3 cabins, including a pilot's cabin with a single

Berths: 9 guests in 5 staterooms

Entertainment: Guest Cabins: Each cabin has its own entertainment center Common Areas: Spacious saloon and upper deck areas for relaxation and socialising

Air Conditioning: Equipped with a comprehensive air conditioning system, ensuring comfort throughout the vessel.

Freezer: Dedicated freezer units are included

Stove: The galley is equipped with a high-quality stove, suitable for preparing meals during extended voyages.

Hot Water System: The yacht is equipped with a hot water system to provide comfort during extended stays.

Bilge Pumps: Integrated hydraulic bilge pumps

Life Raft: Yes

Fire Protection: Includes an automatic fire suppression system in the engine room and lazarette
