Carver 570 Pilothouse Cruiser

$549,000 AUD

Year2000
Length17.37
Beam4.6m
Draft1.5m
Cabins3

Carver 570 Pilothouse Cruiser| $549,000 AUD

Overview

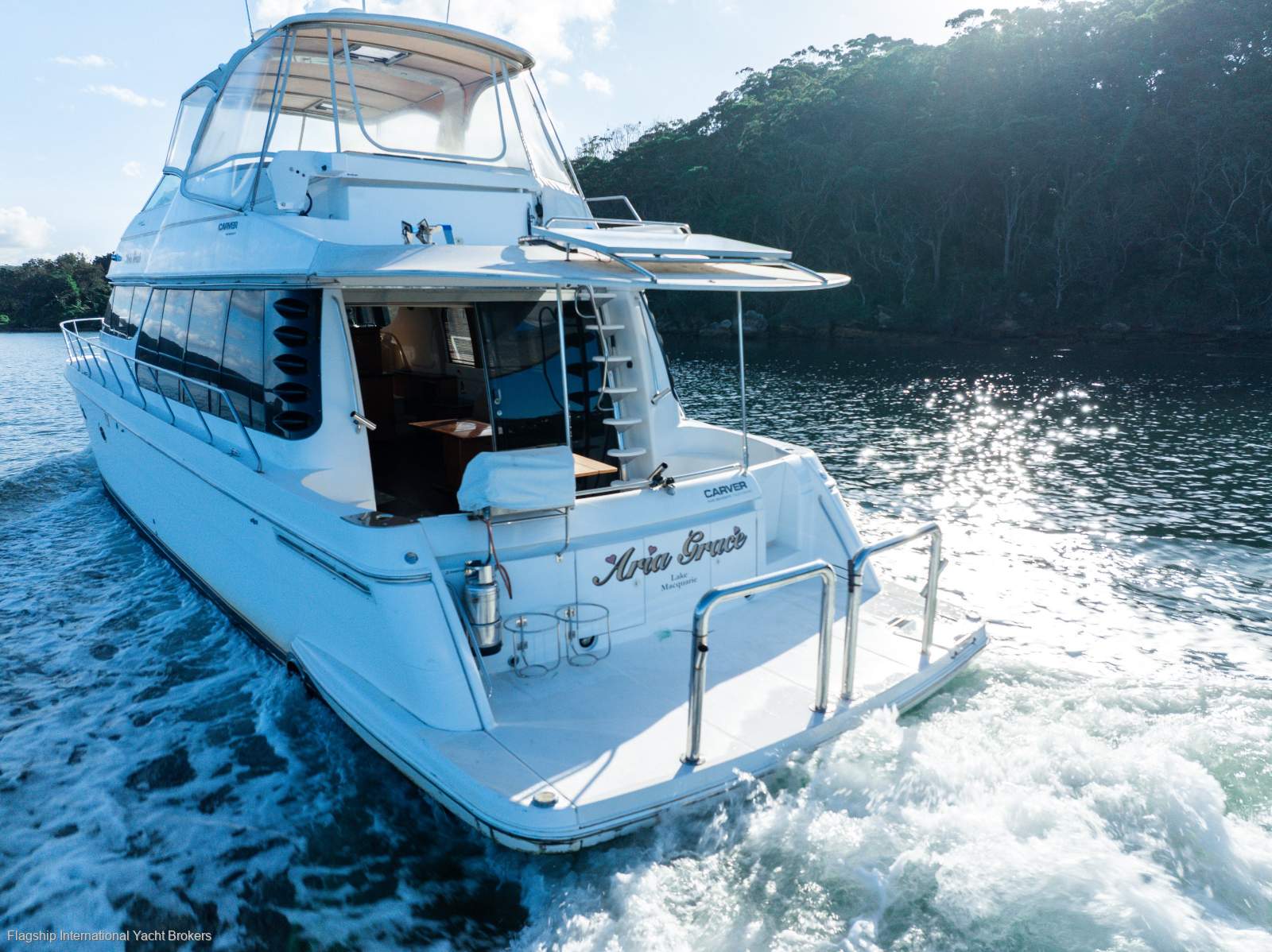

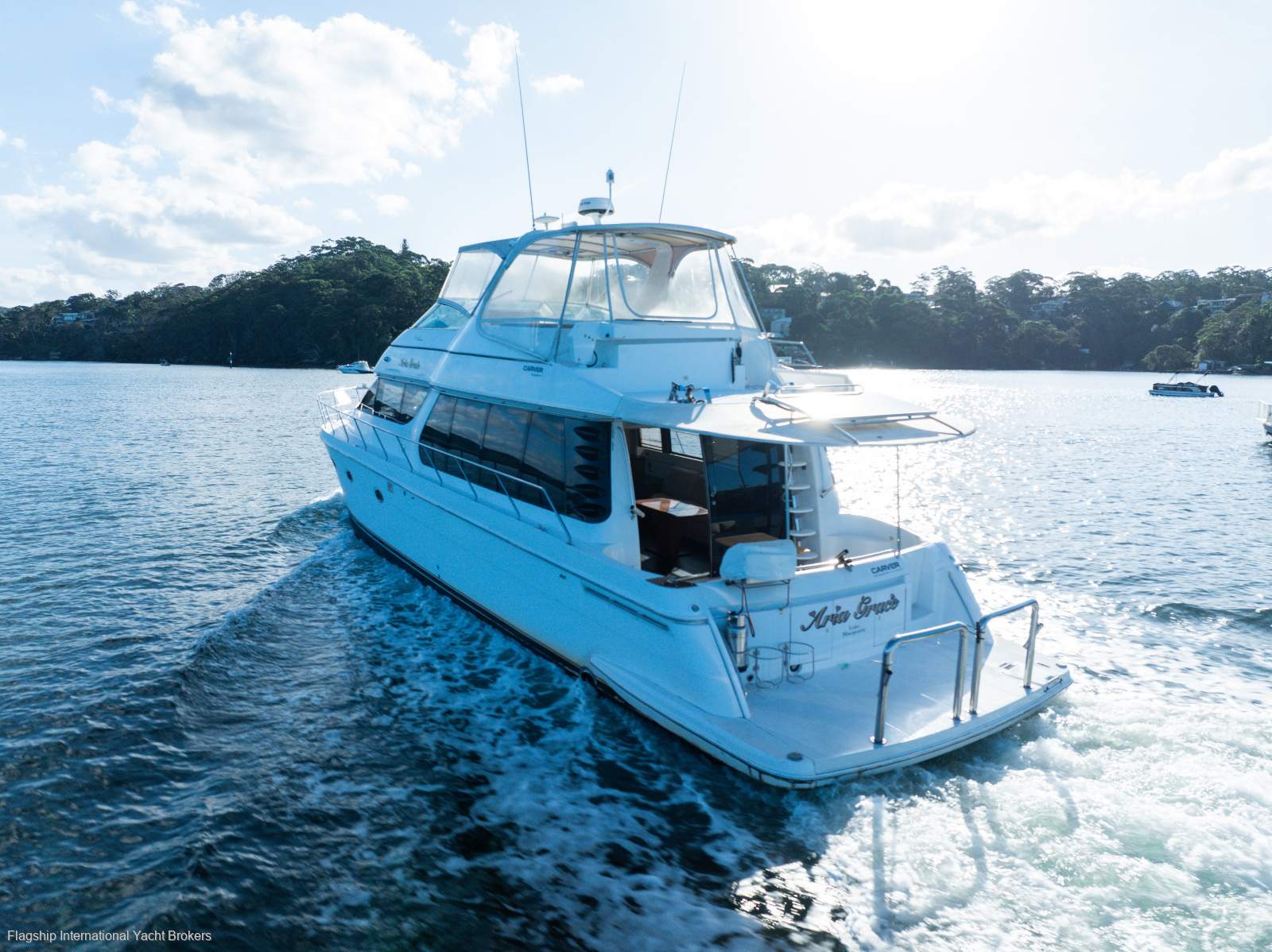

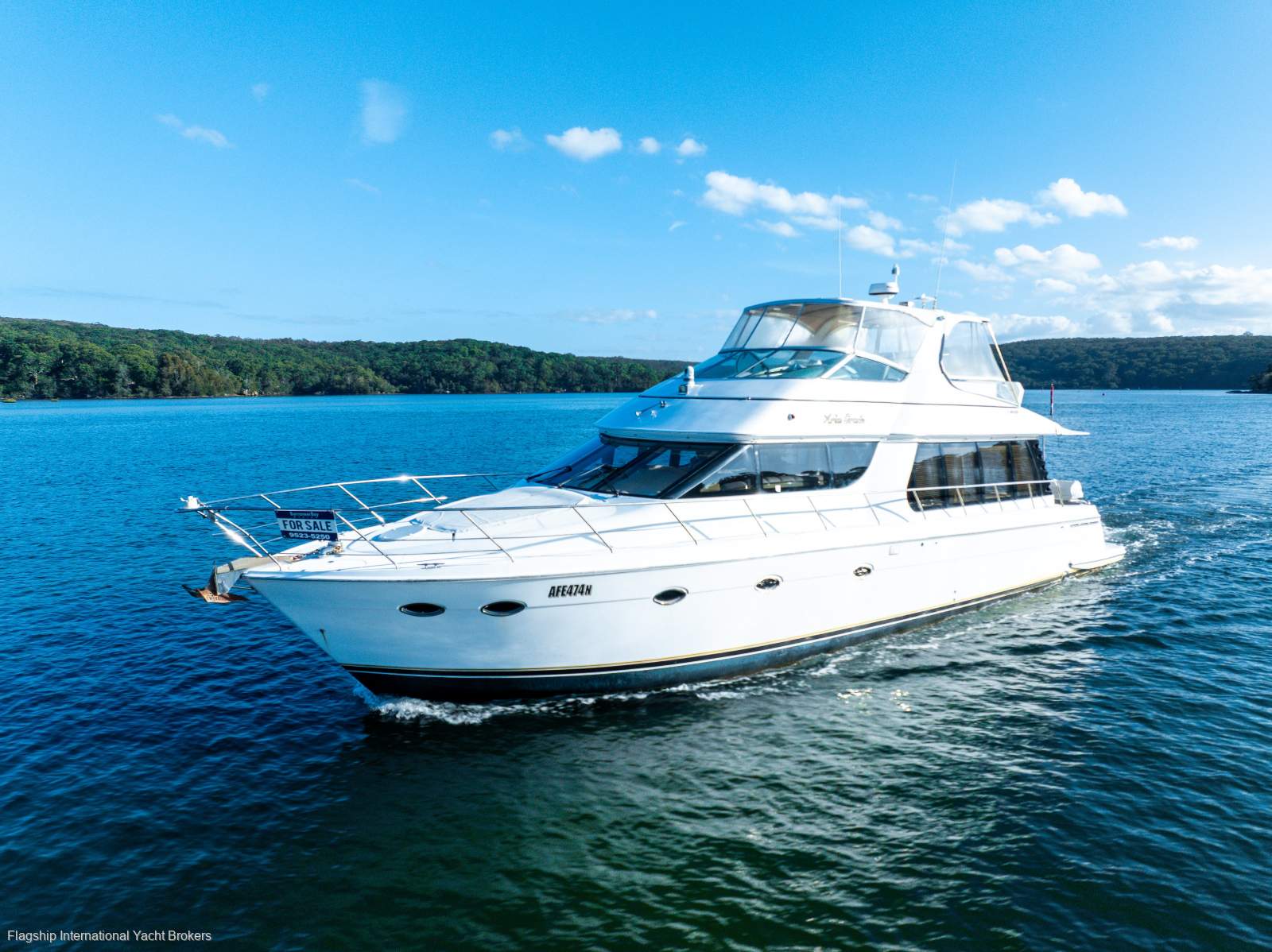

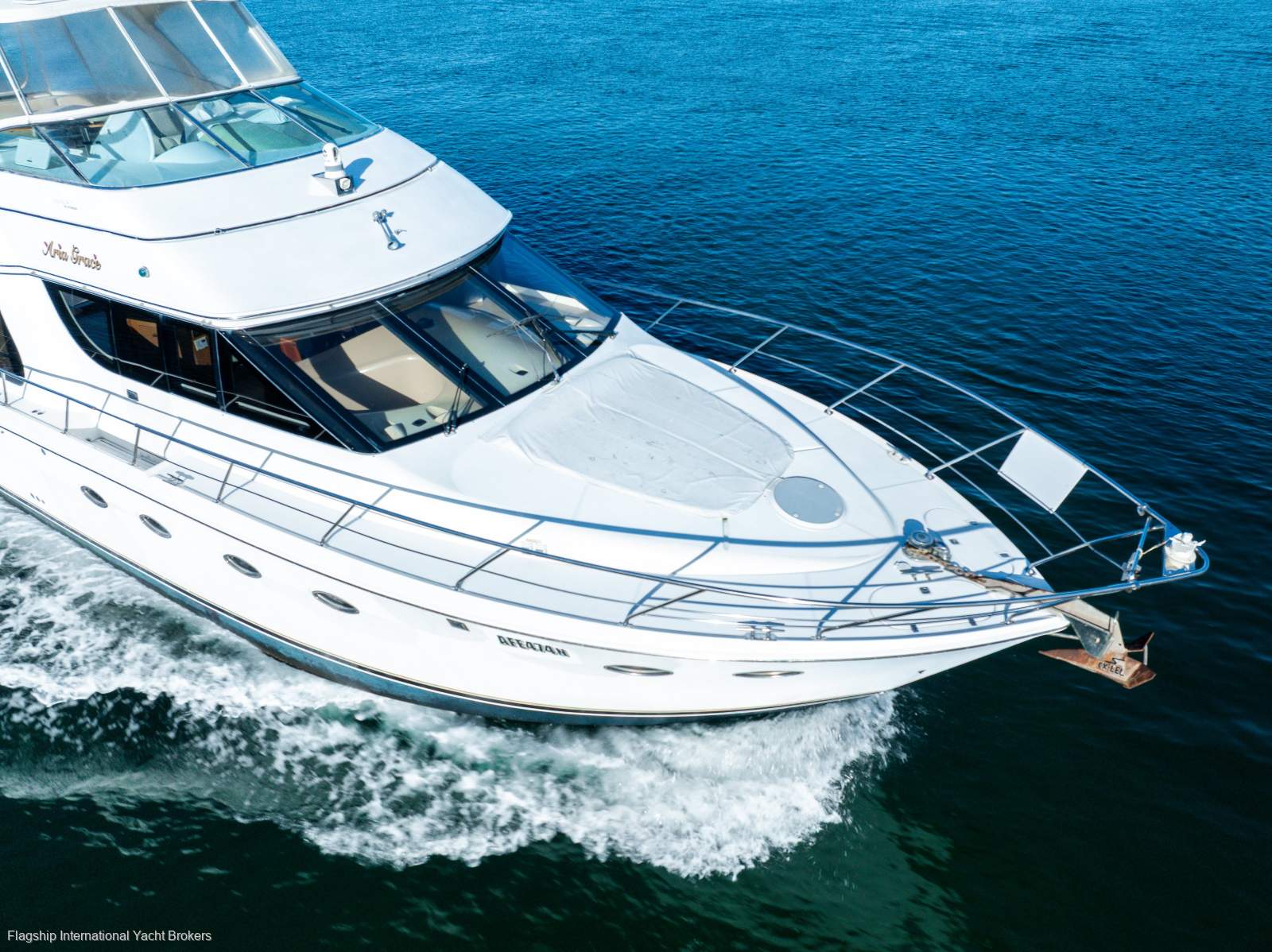

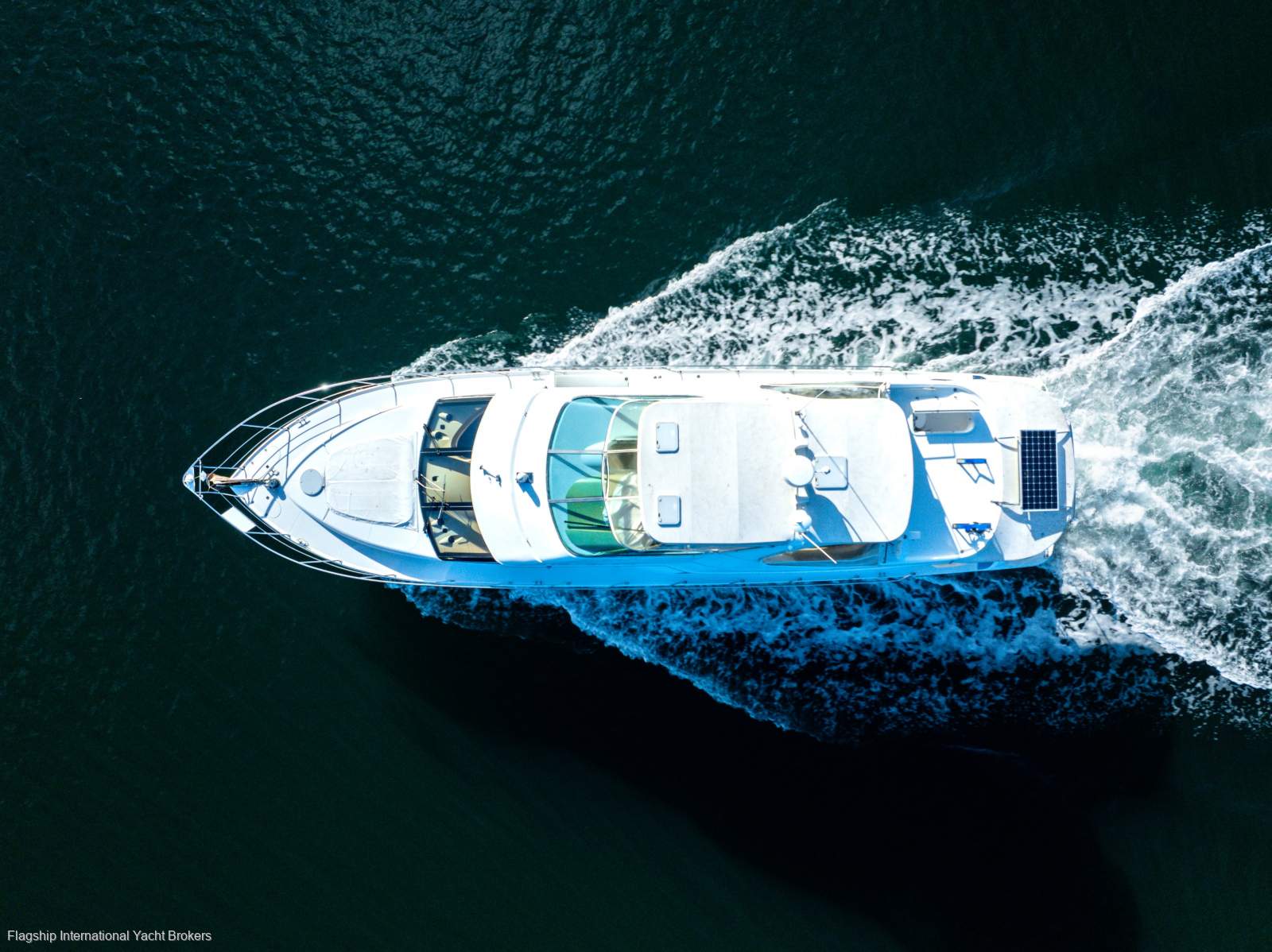

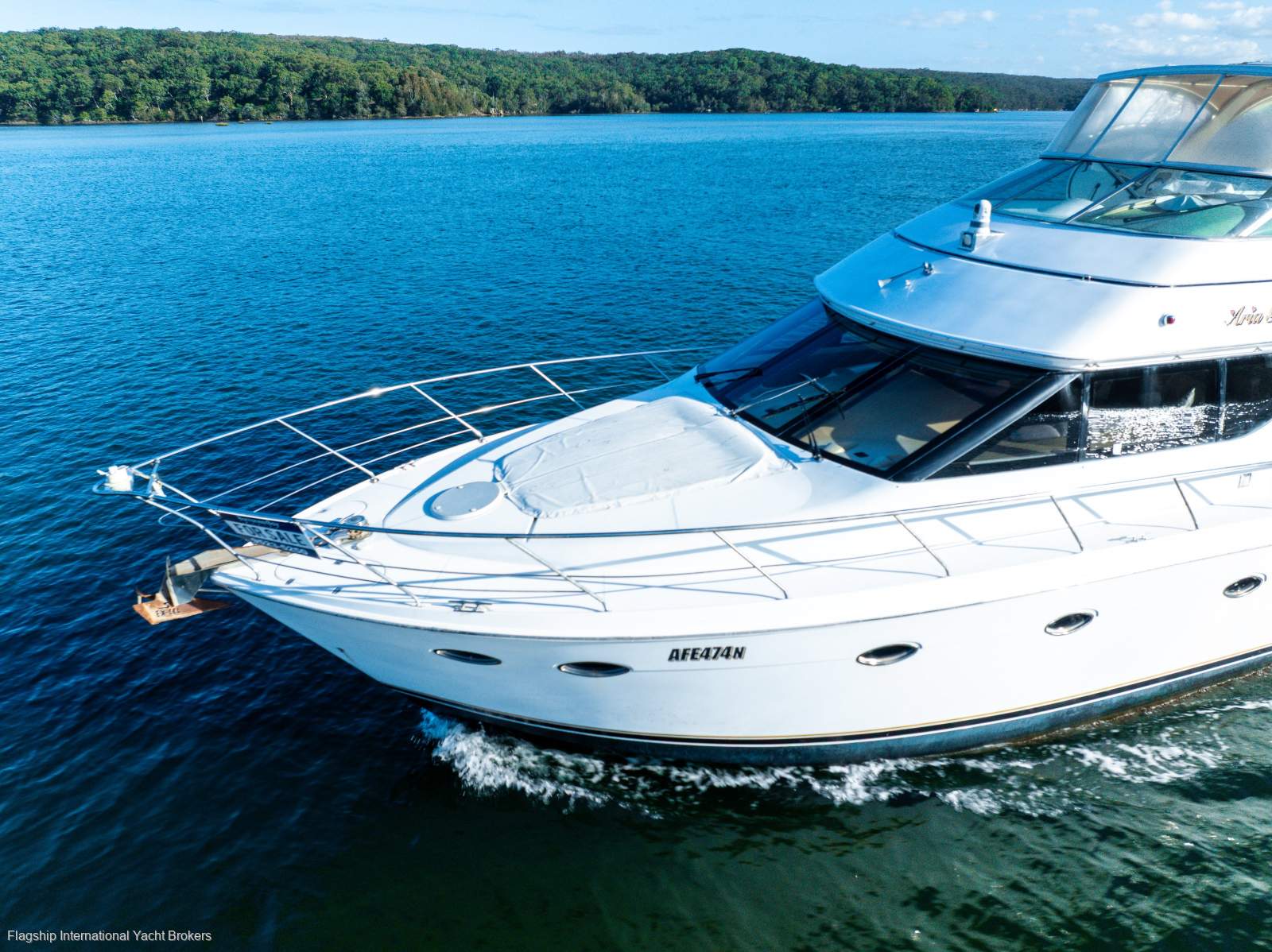

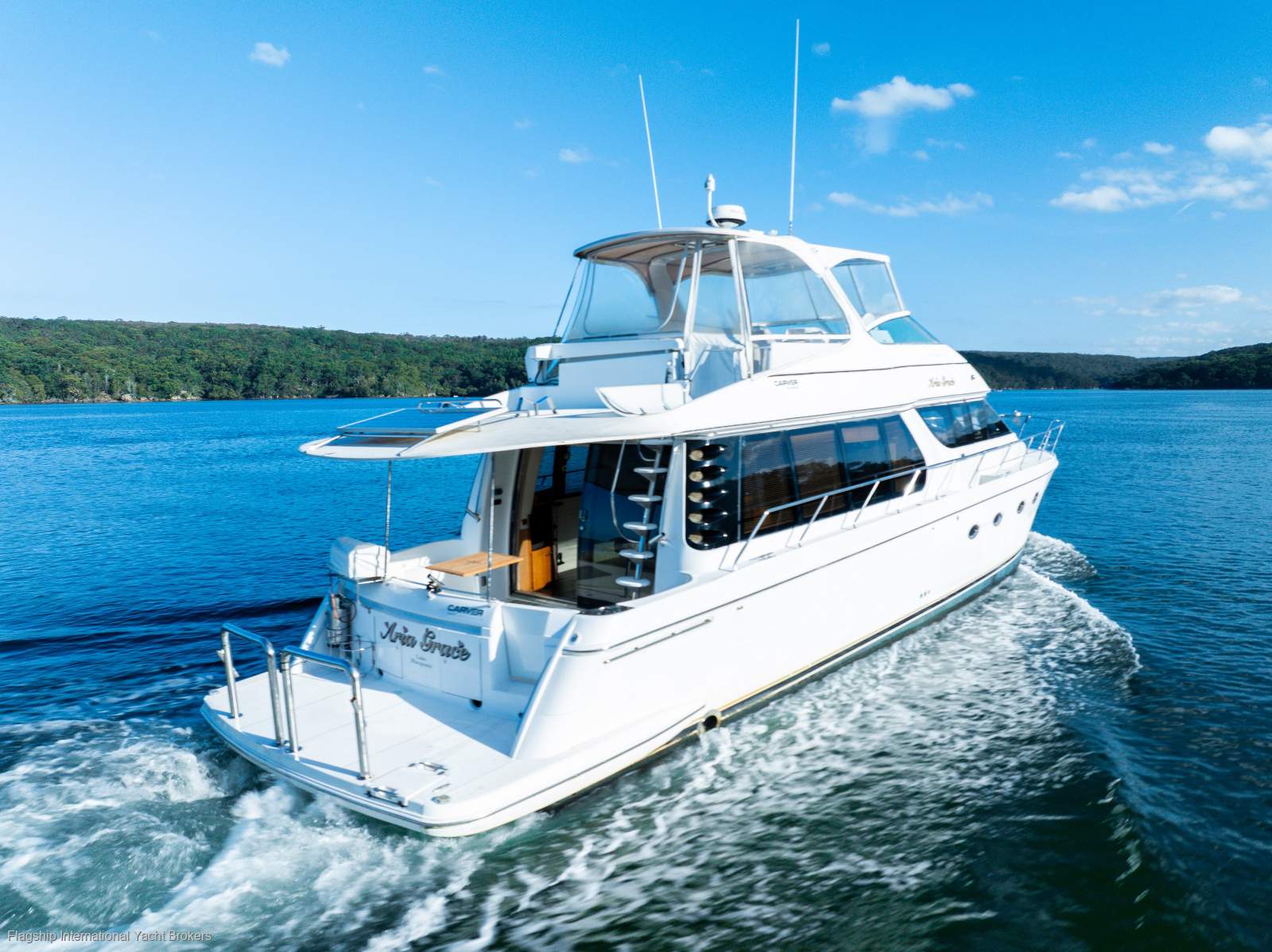

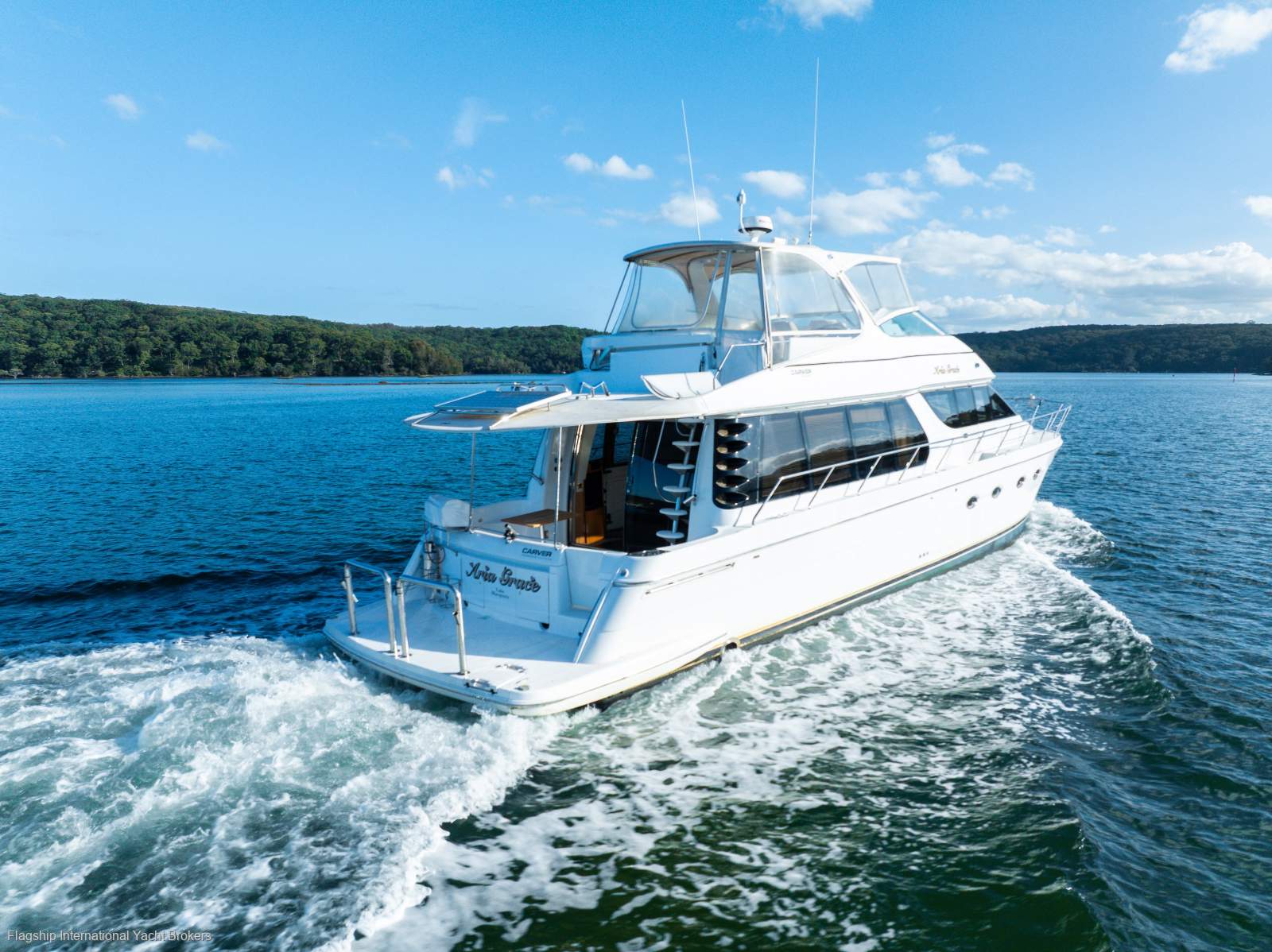

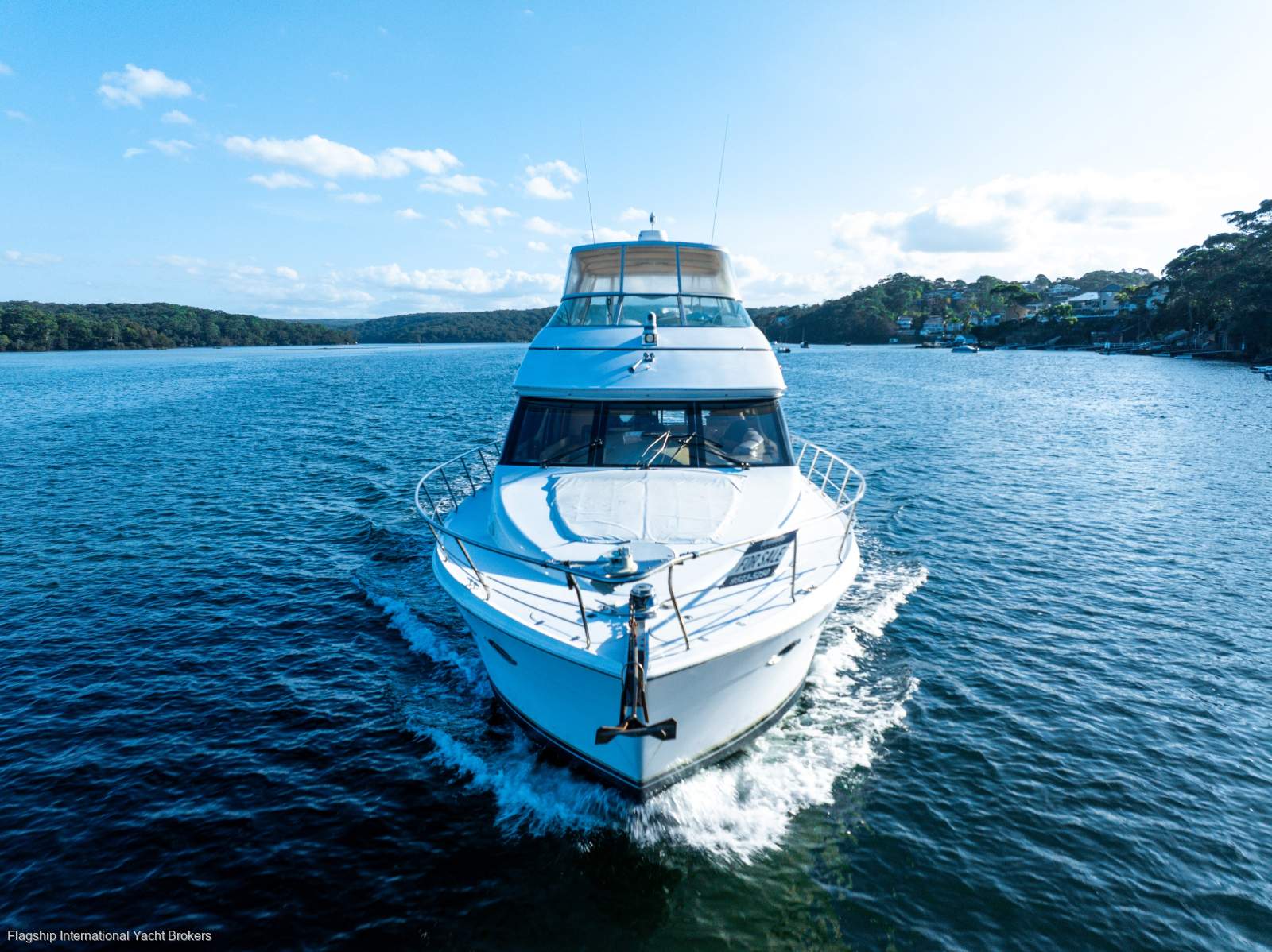

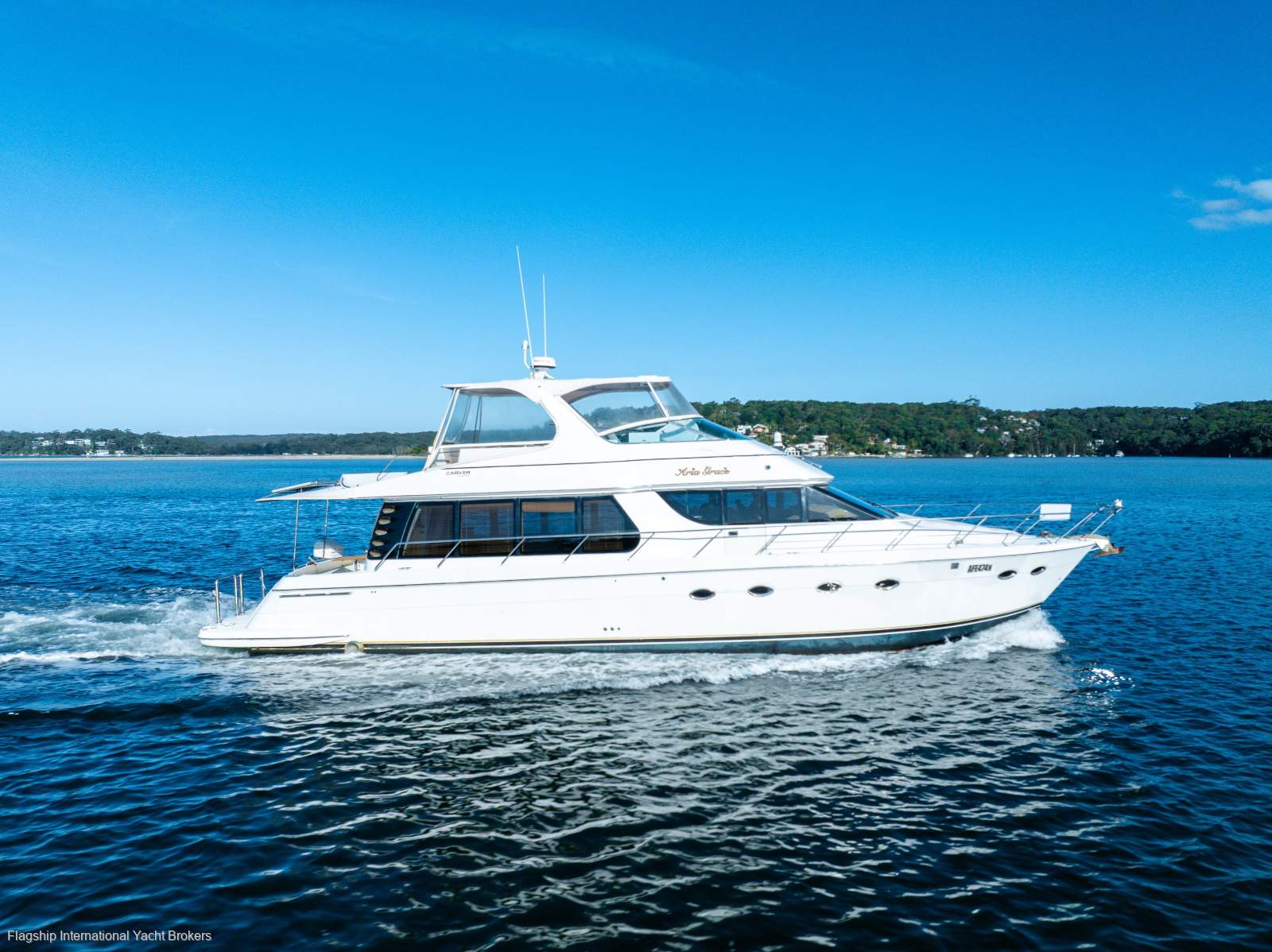

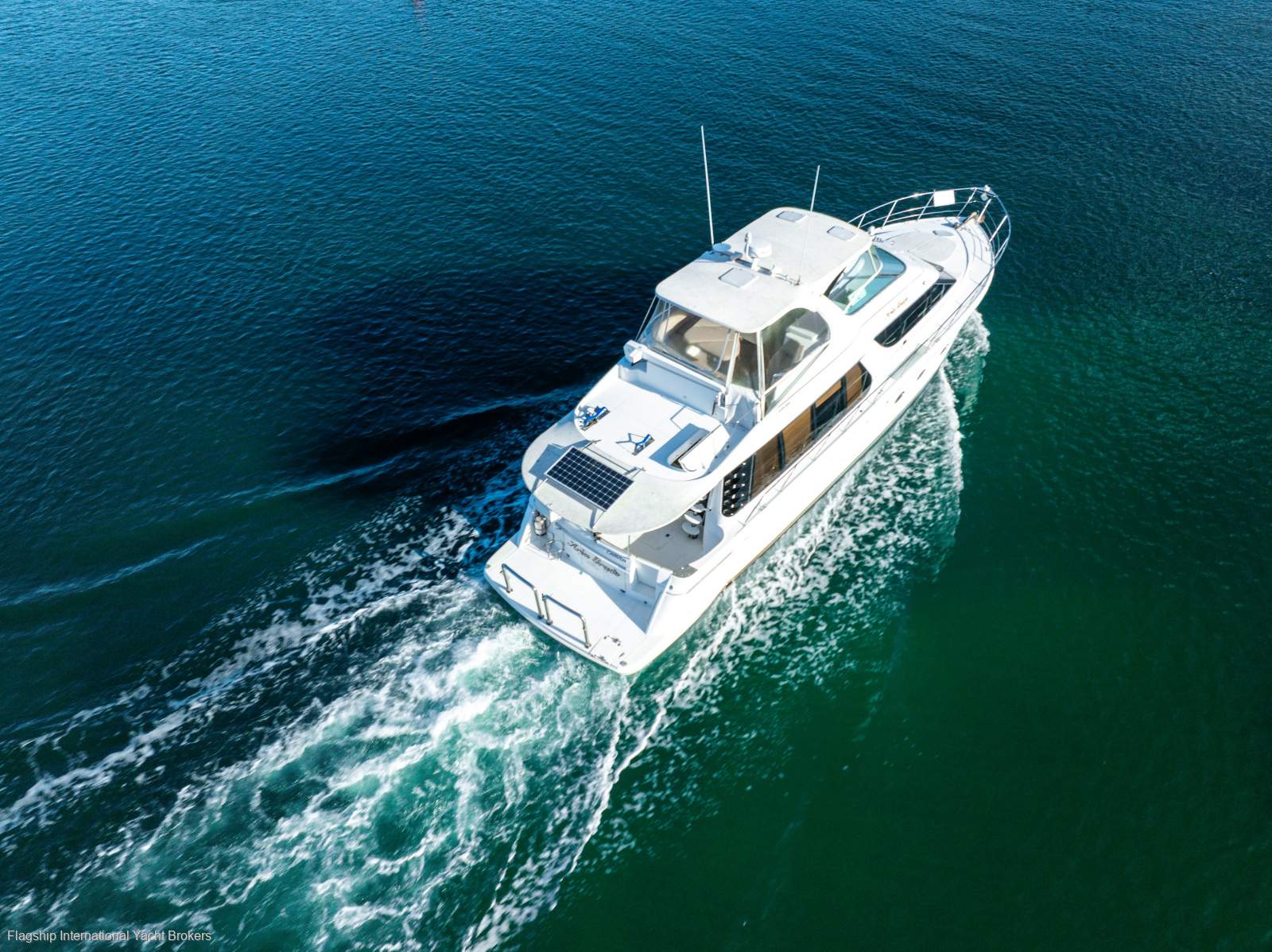

Aria Grace is a 2000 Carver 57 Pilothouse Cruiser that delivers the long-range capability and easy liveability Carver's Voyager line is known for. A planing GRP hull, generous 4.6 m beam and thoughtful deck layout give the boat confident offshore manners while remaining simple to handle with family or a short crew.

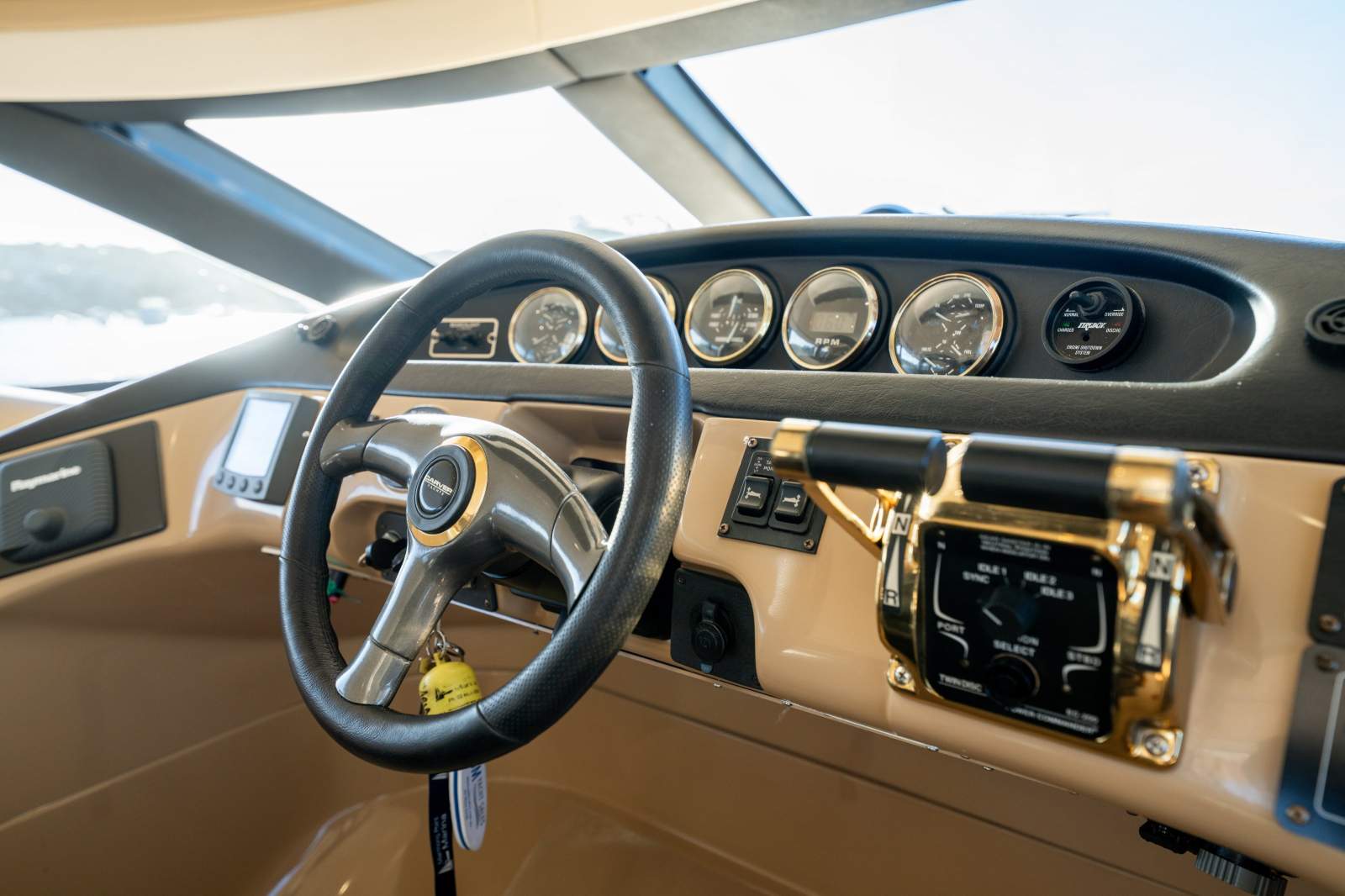

Power comes from twin 535 hp Cummins turbo-diesels coupled to Twin Disc electronic controls and Capitaine hydraulic steering, backed by a bow thruster for precision around the dock. A Kohler 15.5 kVA generator keeps the household systems running independent of shore power, and 3,000 litres of diesel provide serious passage range without sacrificing pace.

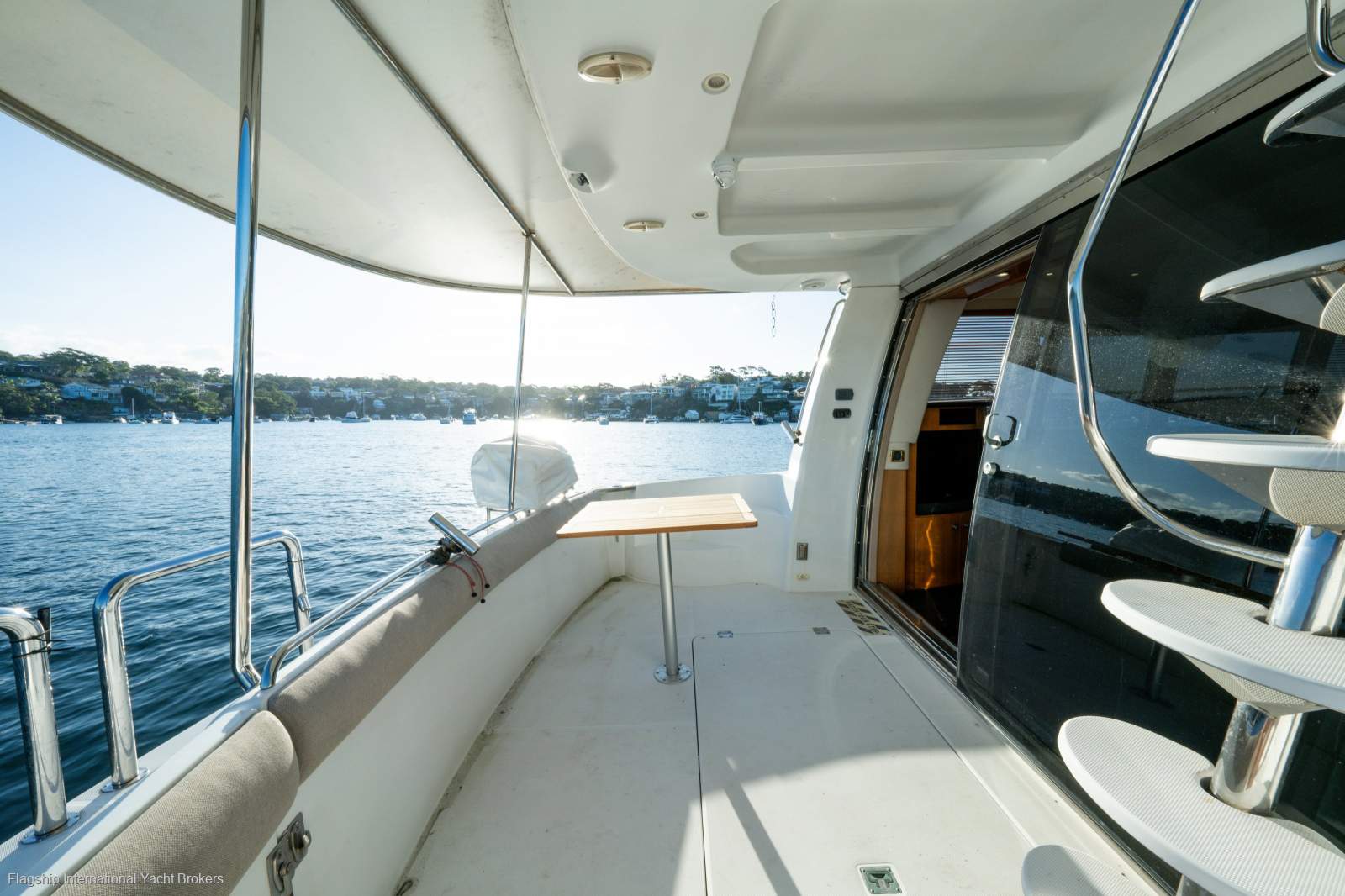

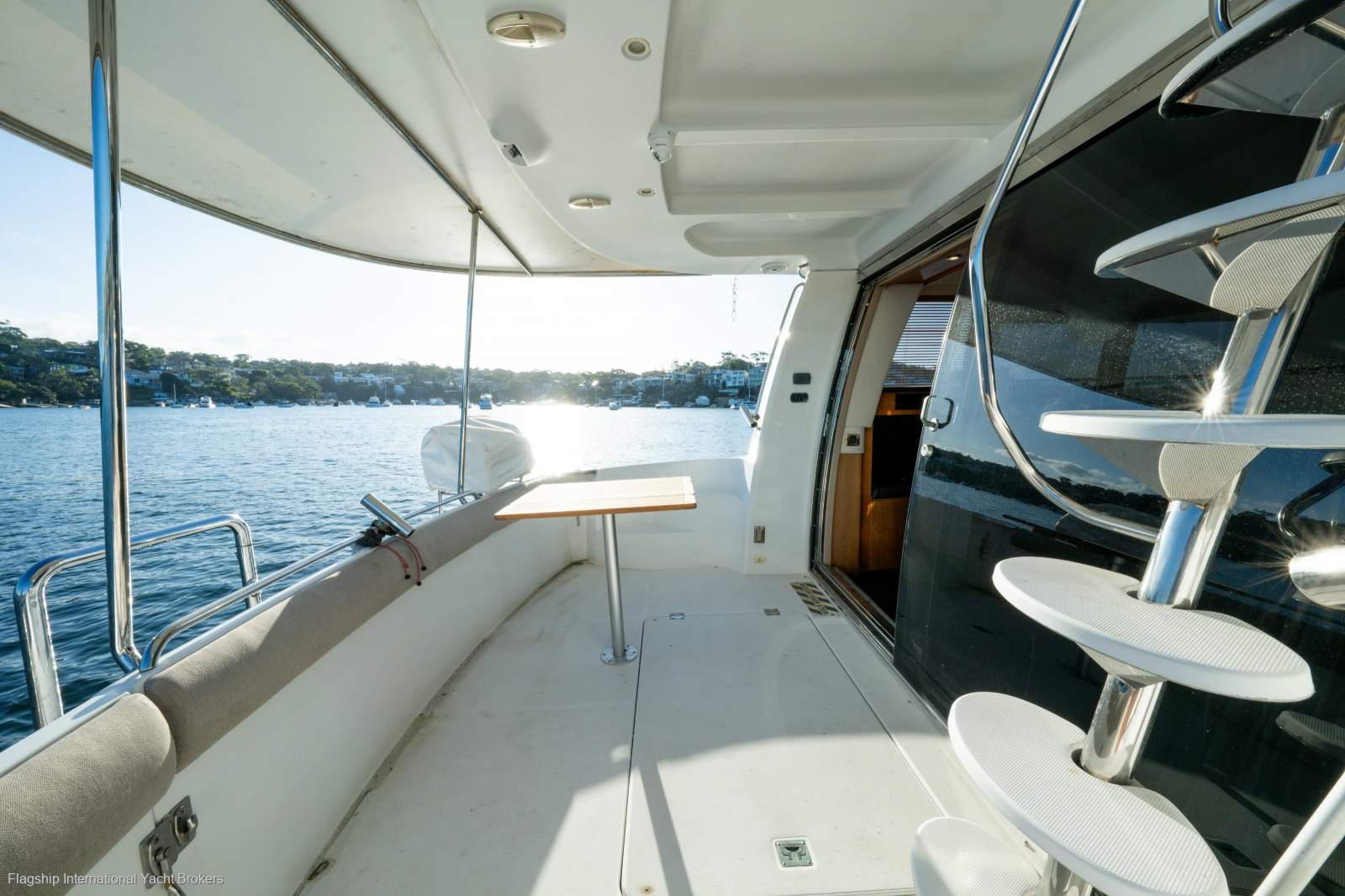

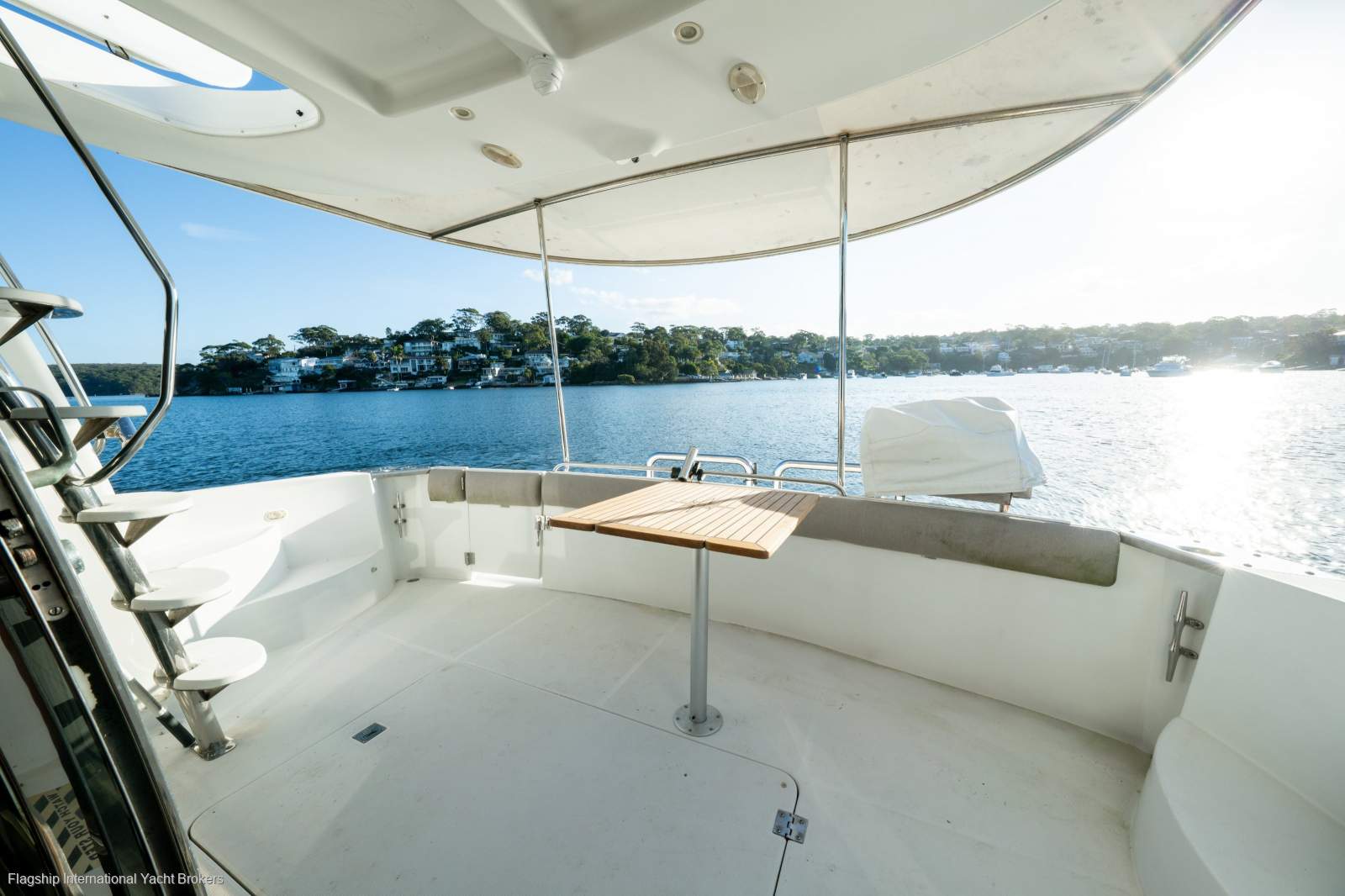

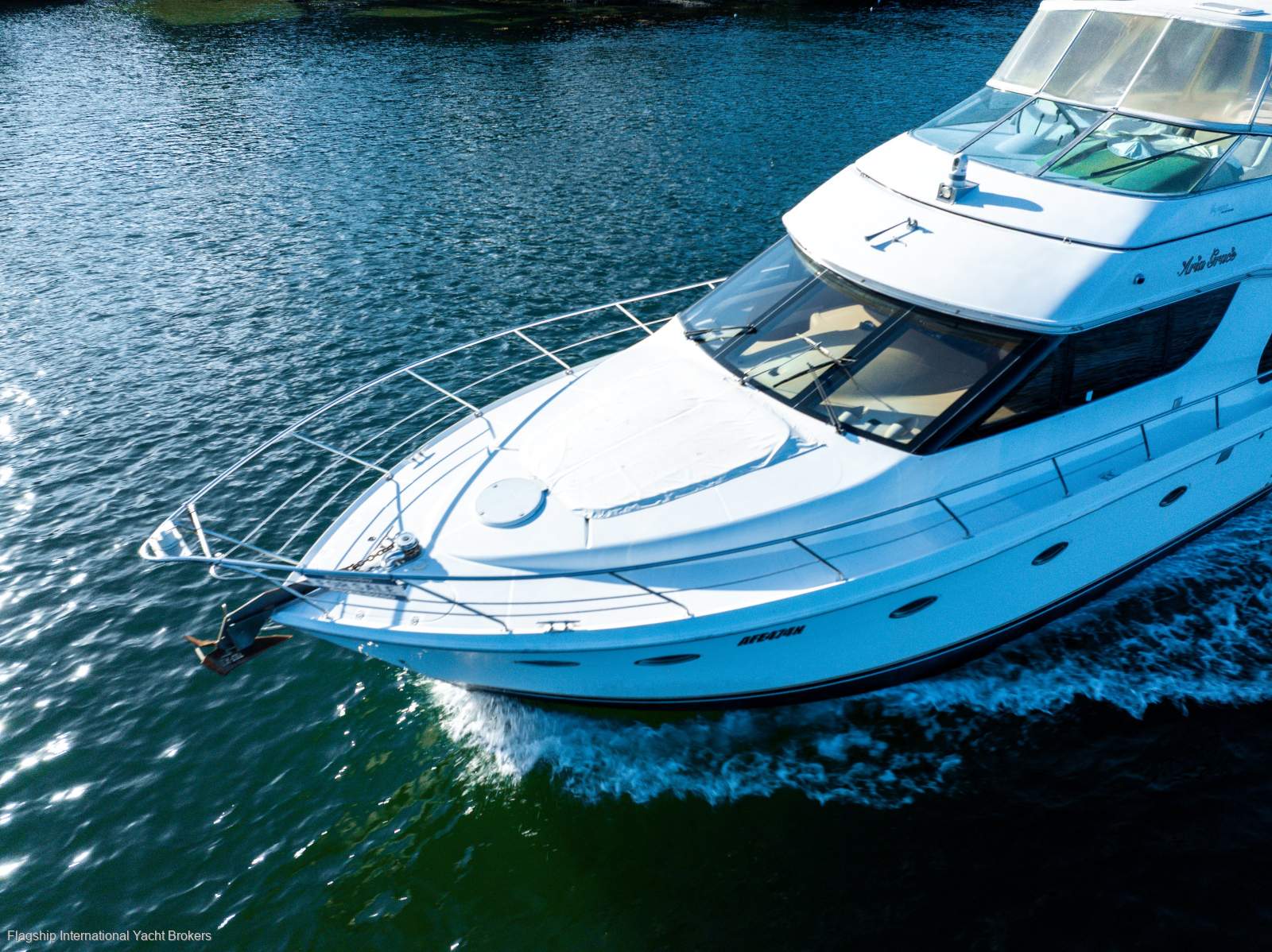

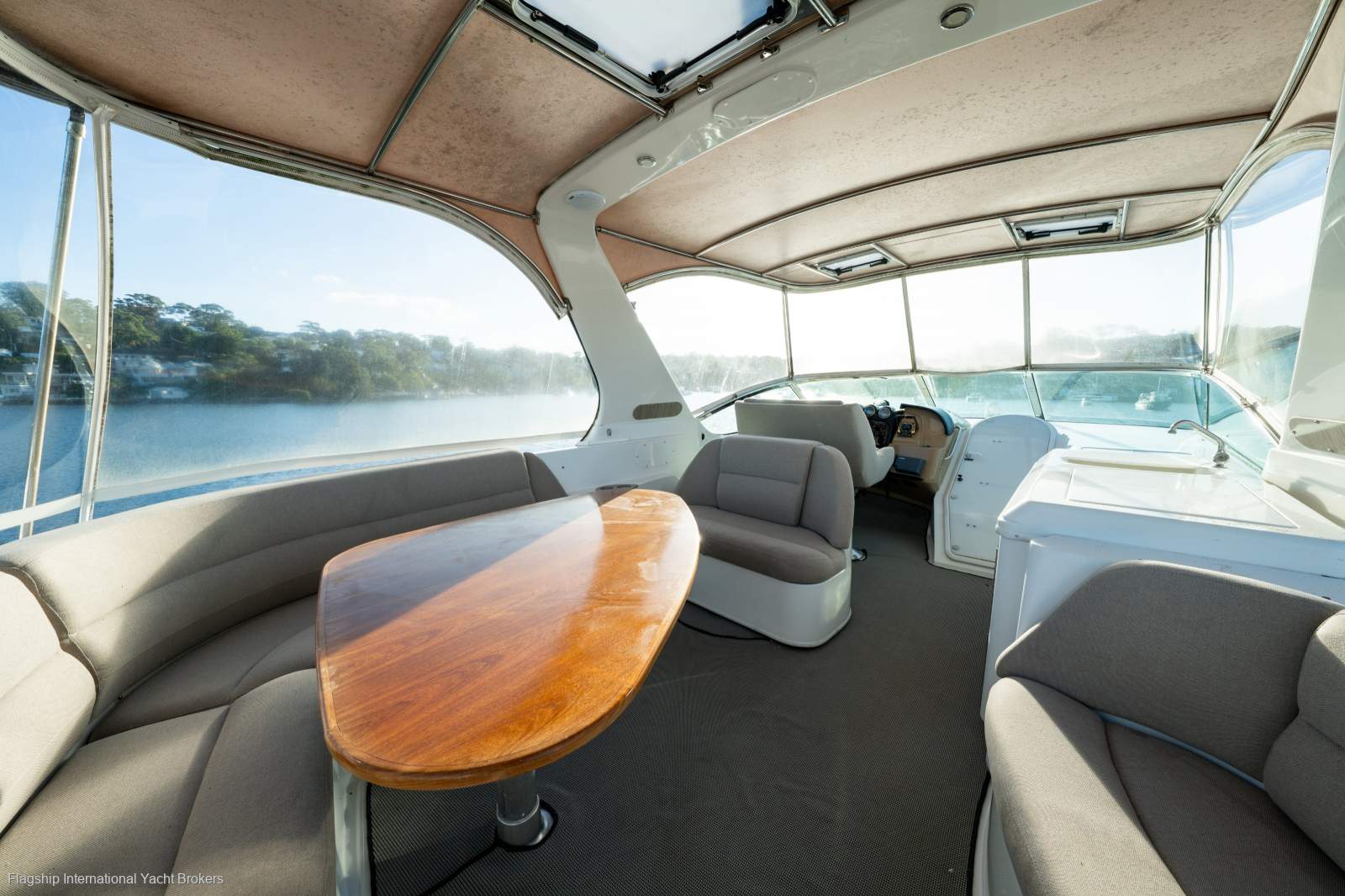

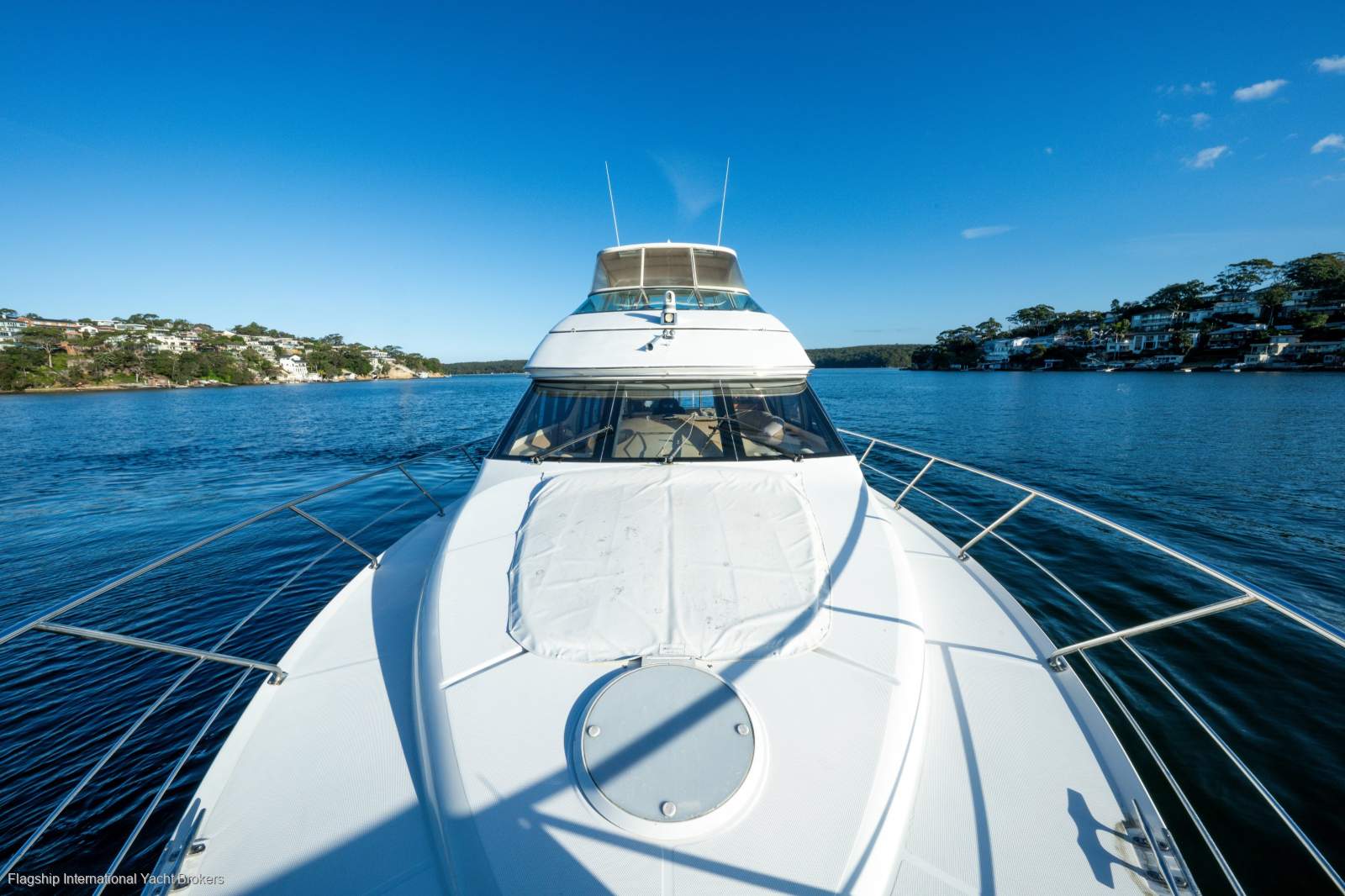

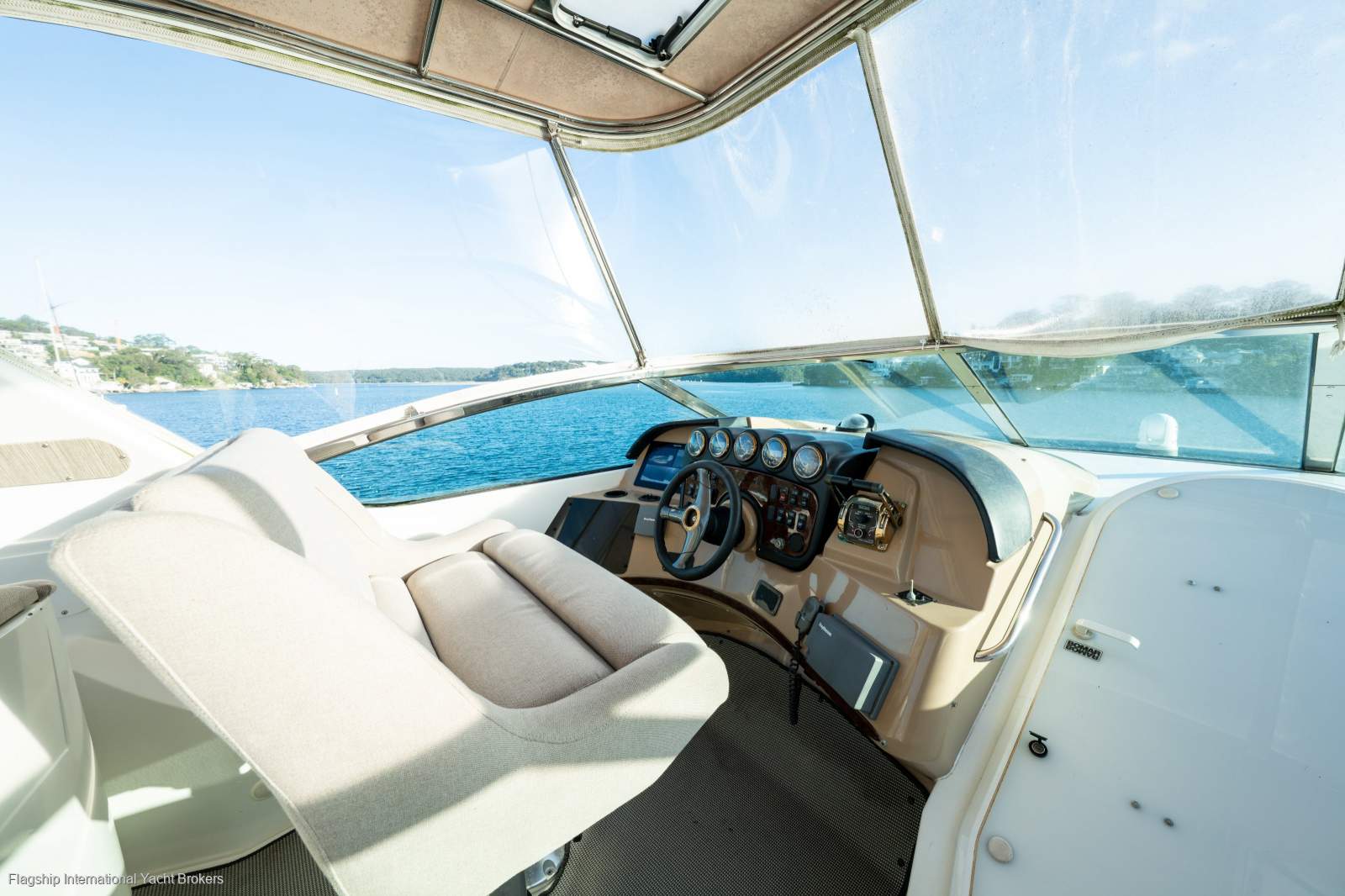

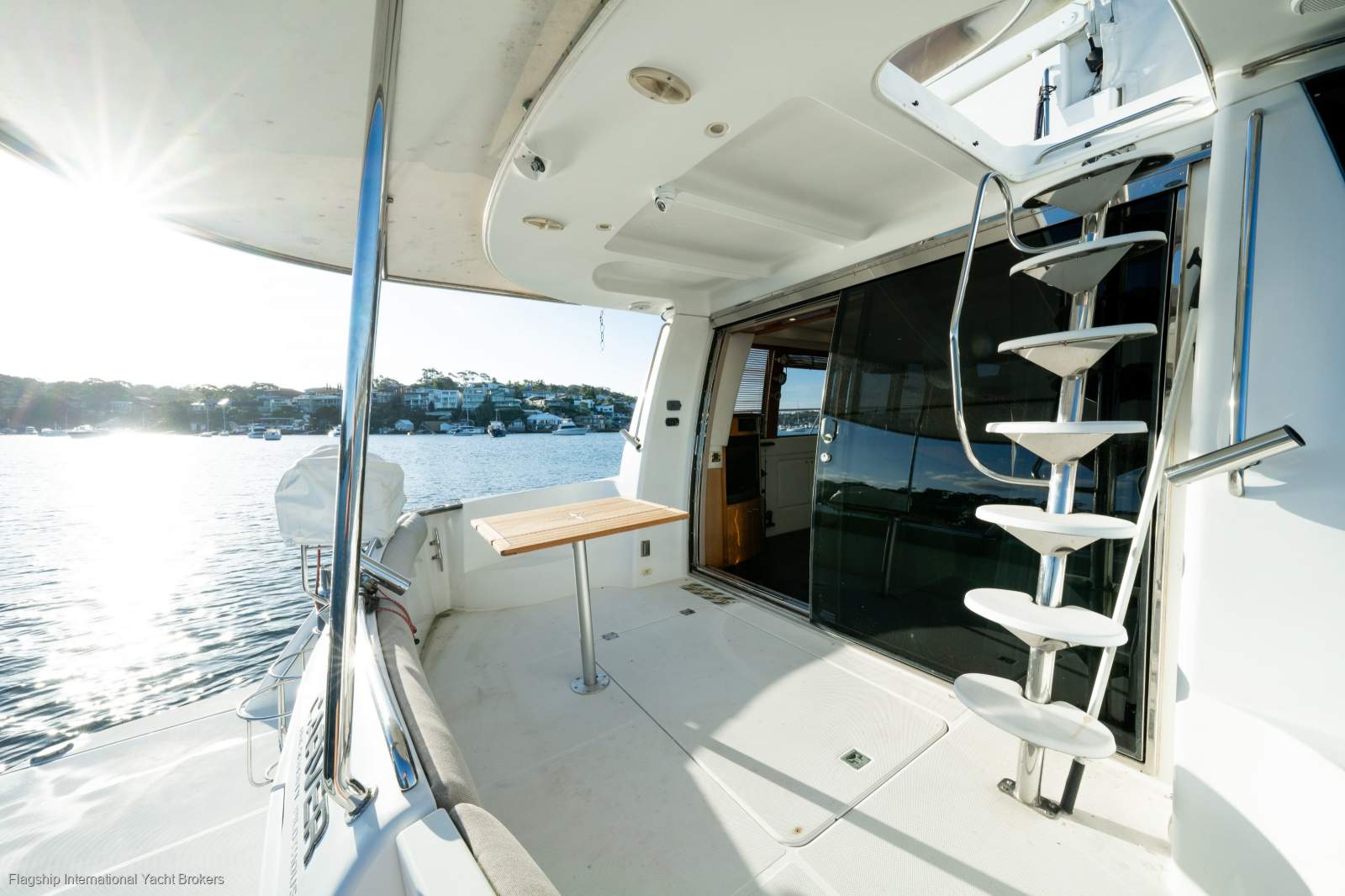

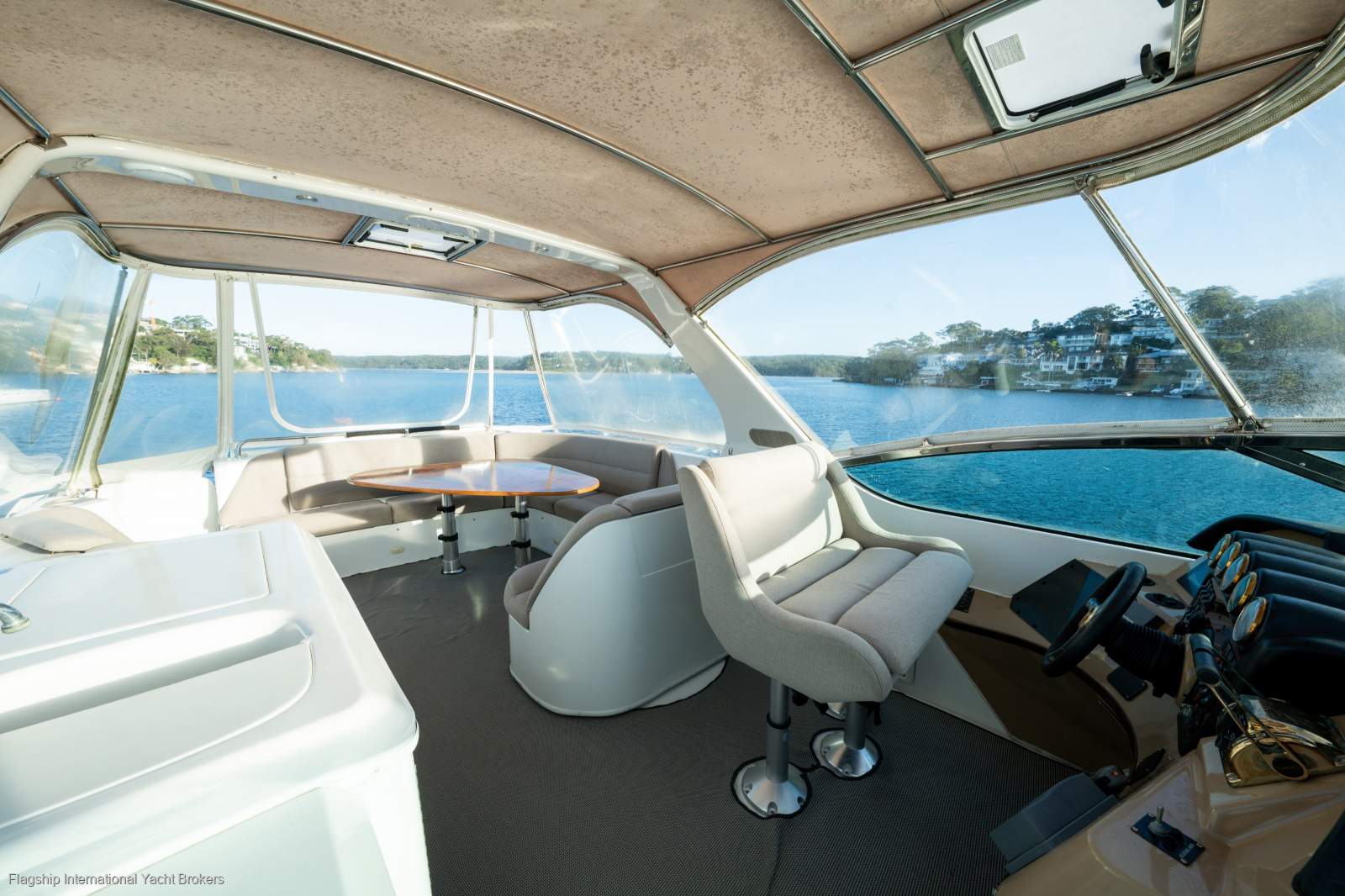

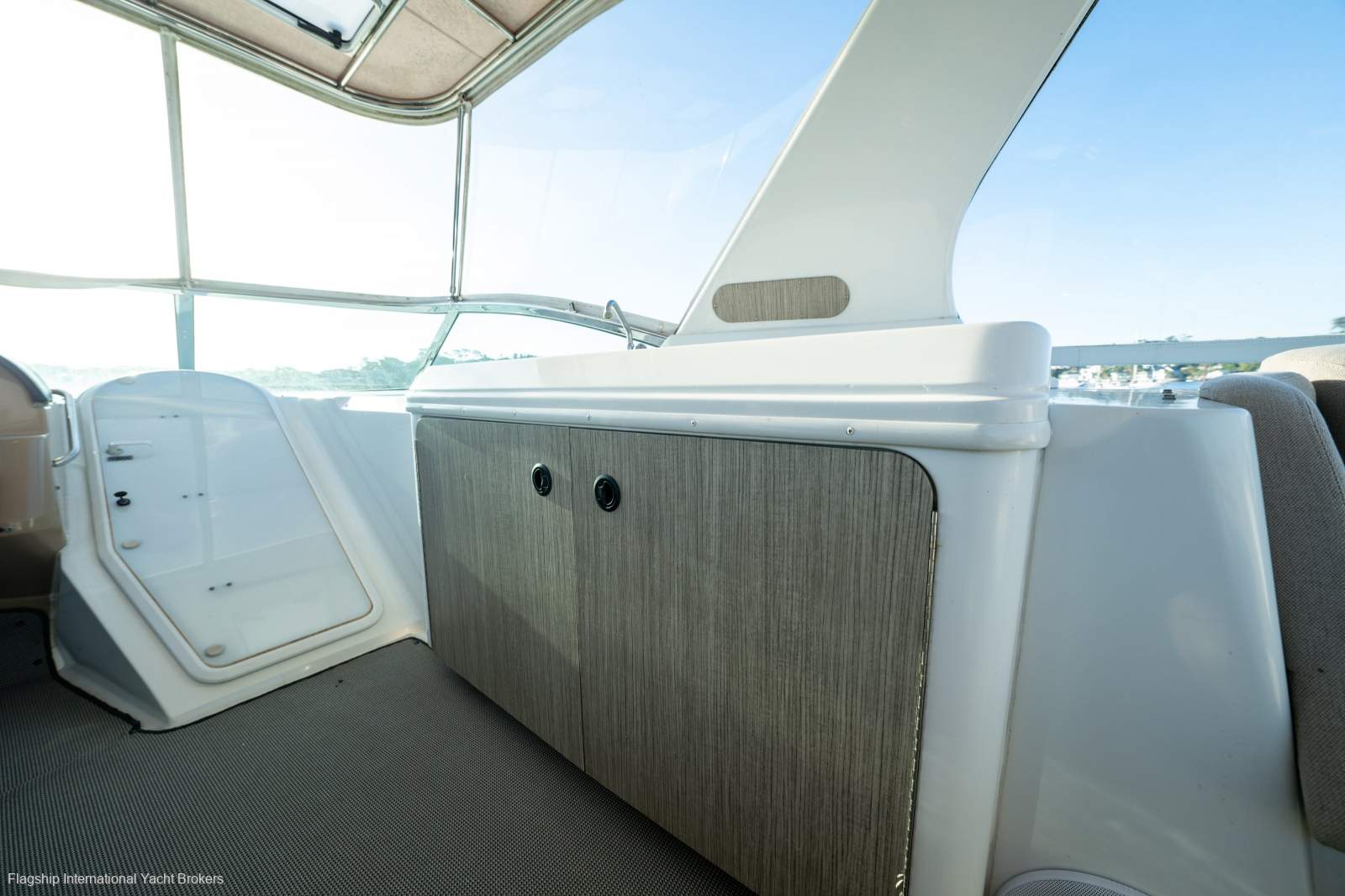

Moulded non-skid side decks lead forward from the sheltered cockpit, while the flybridge doubles as an open-air lounge with revolving helm seat, wrap-around seating, fridge, sink and barbecue. A Marquipt electric davit services the Brig centre-console tender and its 25 hp Yamaha, making beach runs and harbour exploring straightforward.

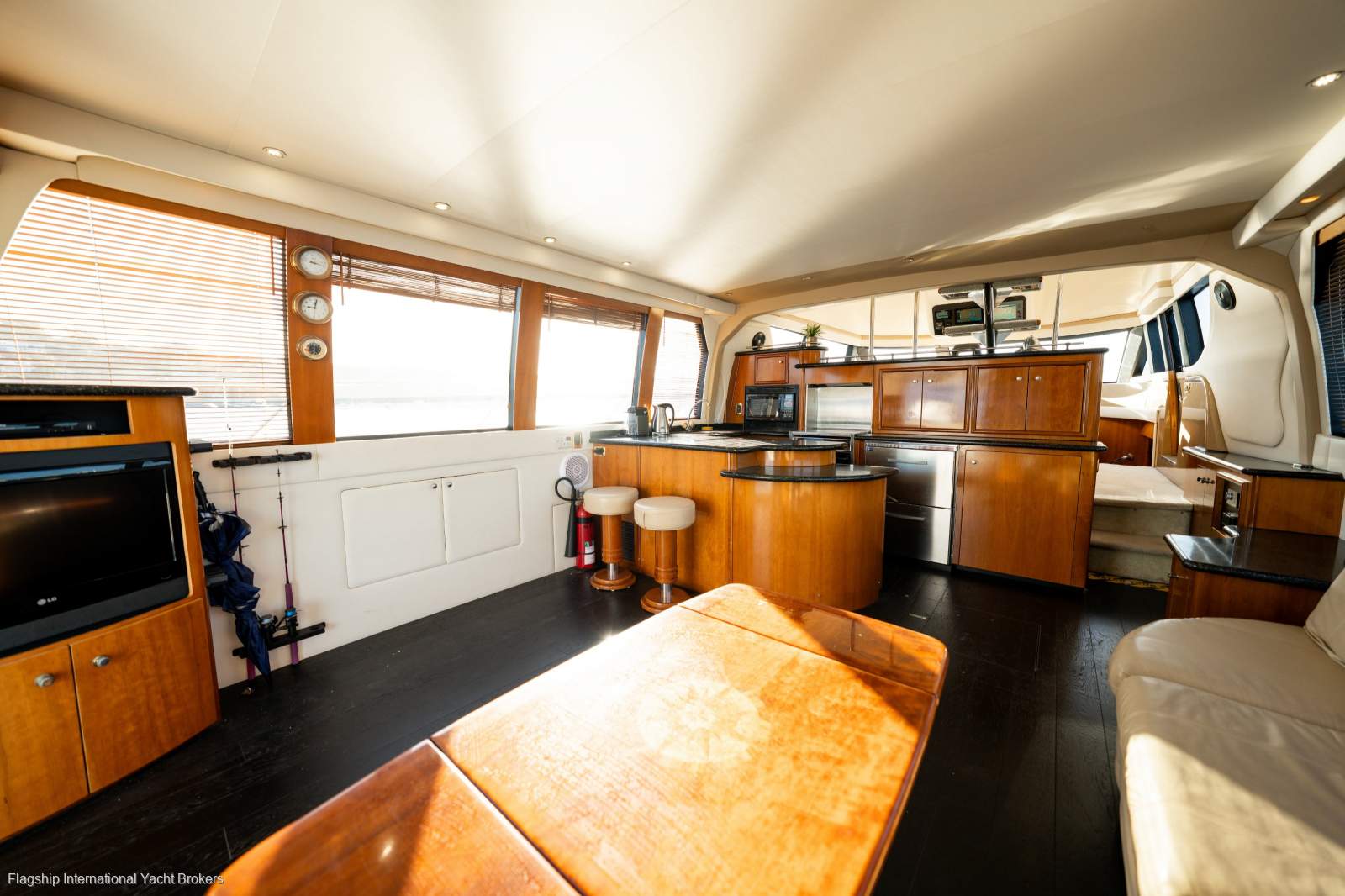

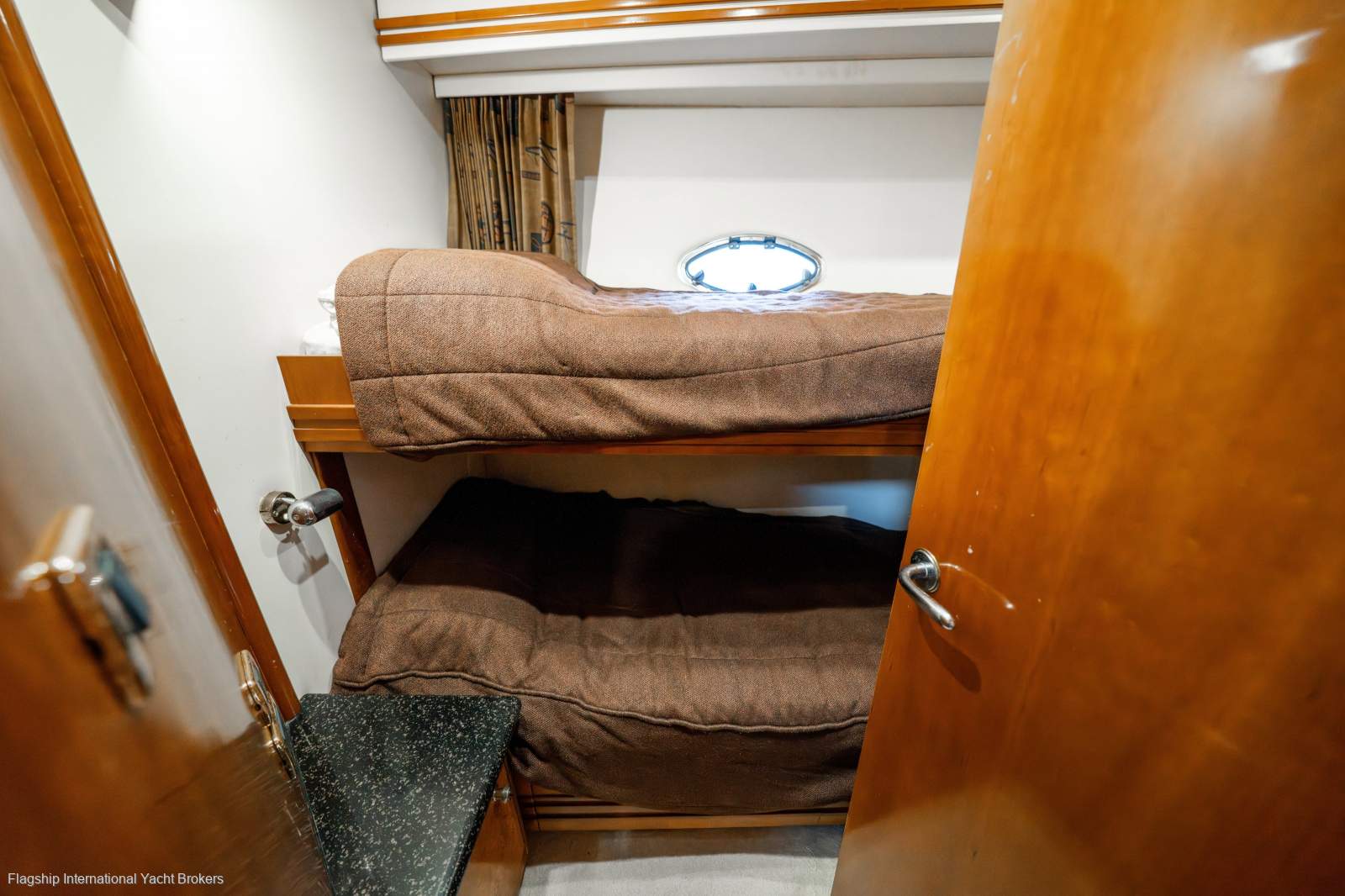

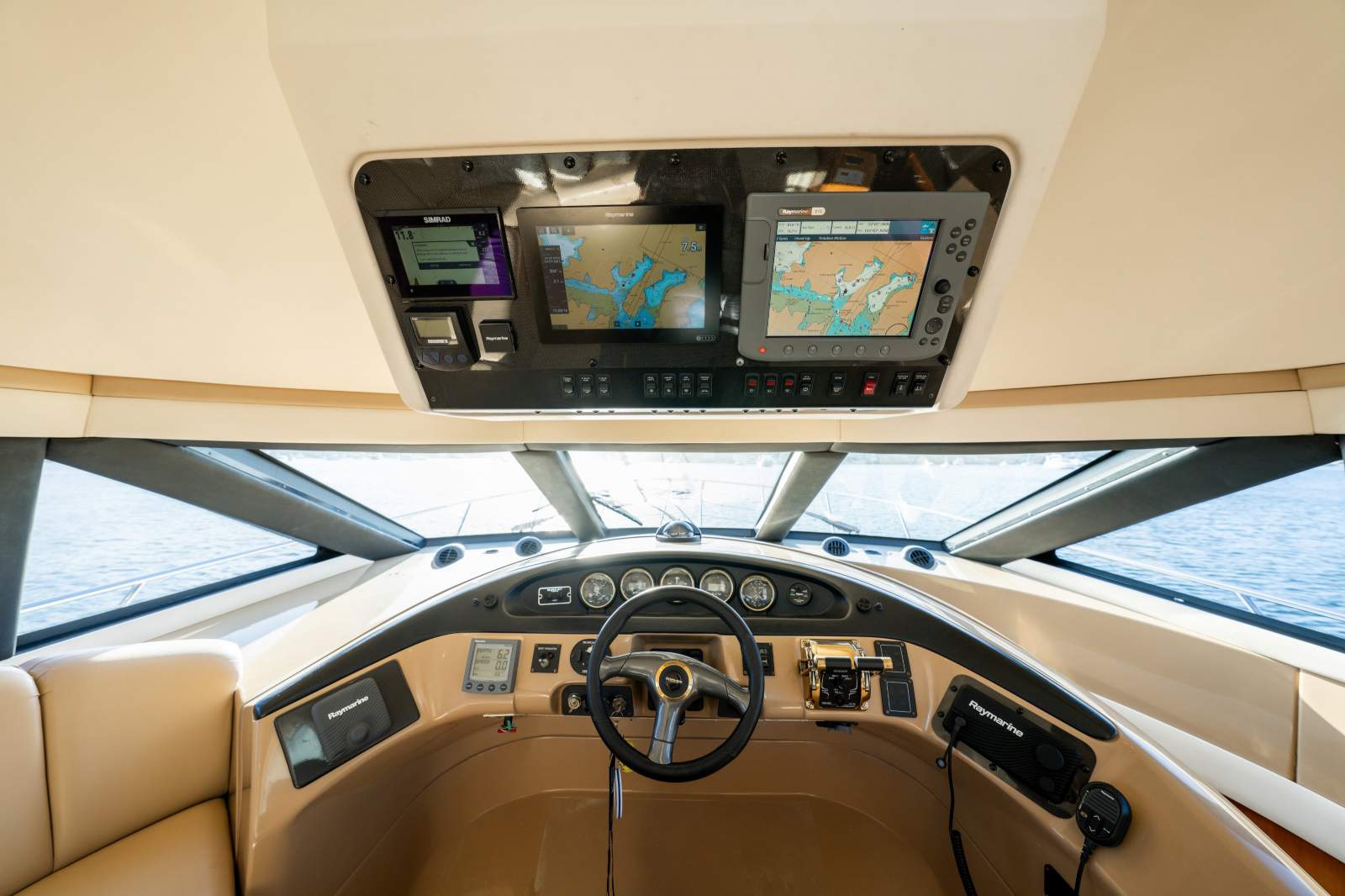

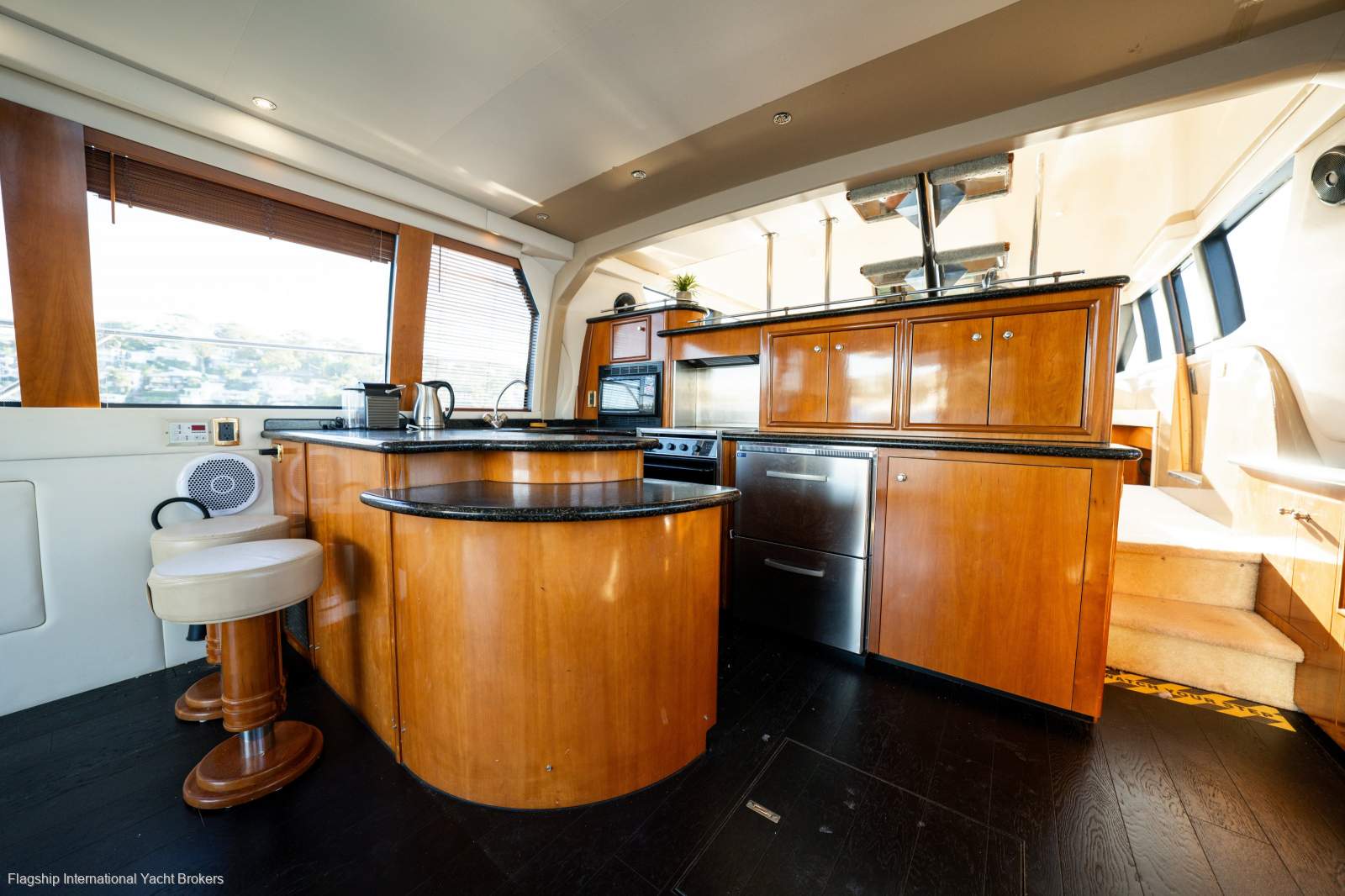

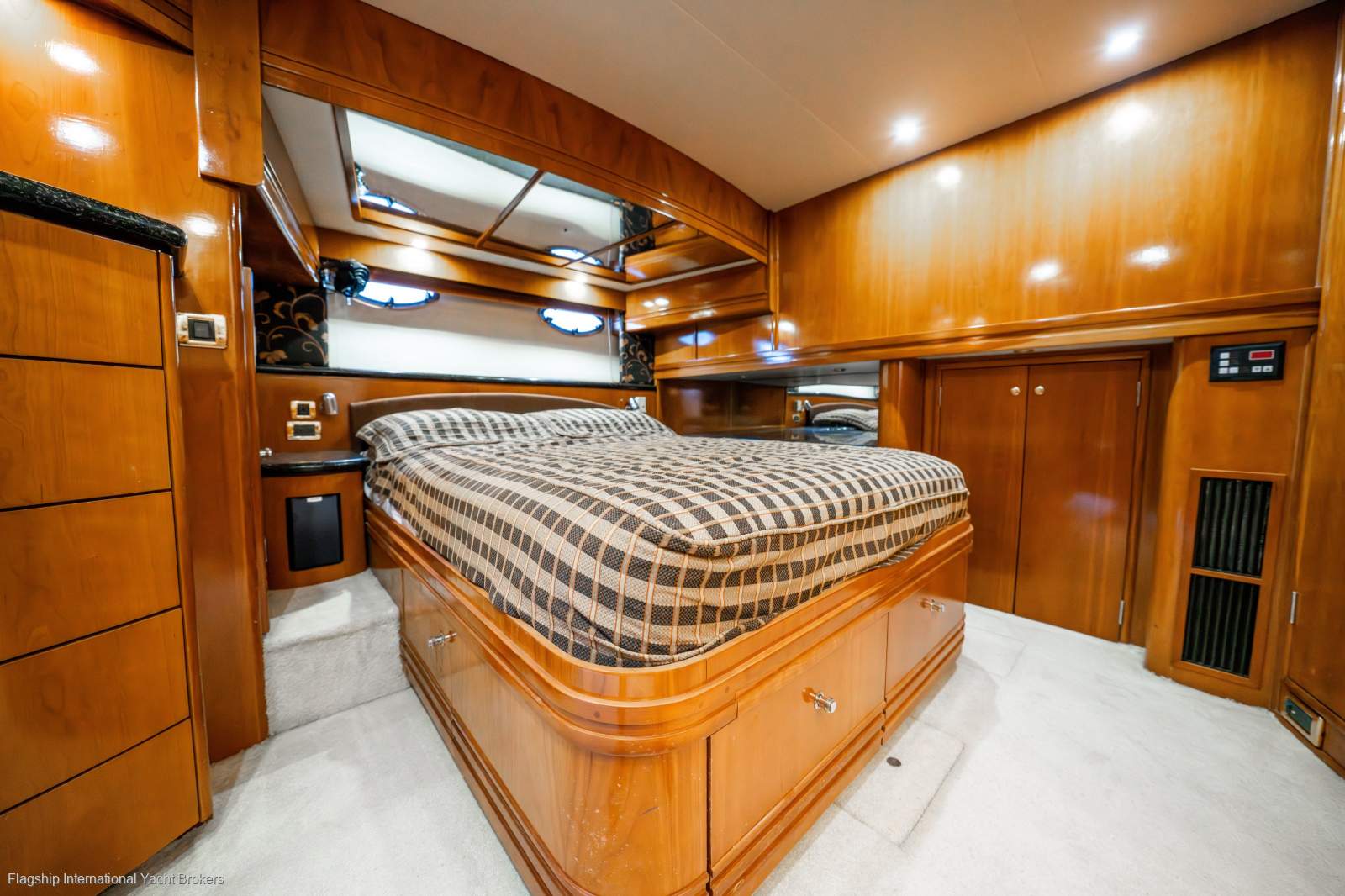

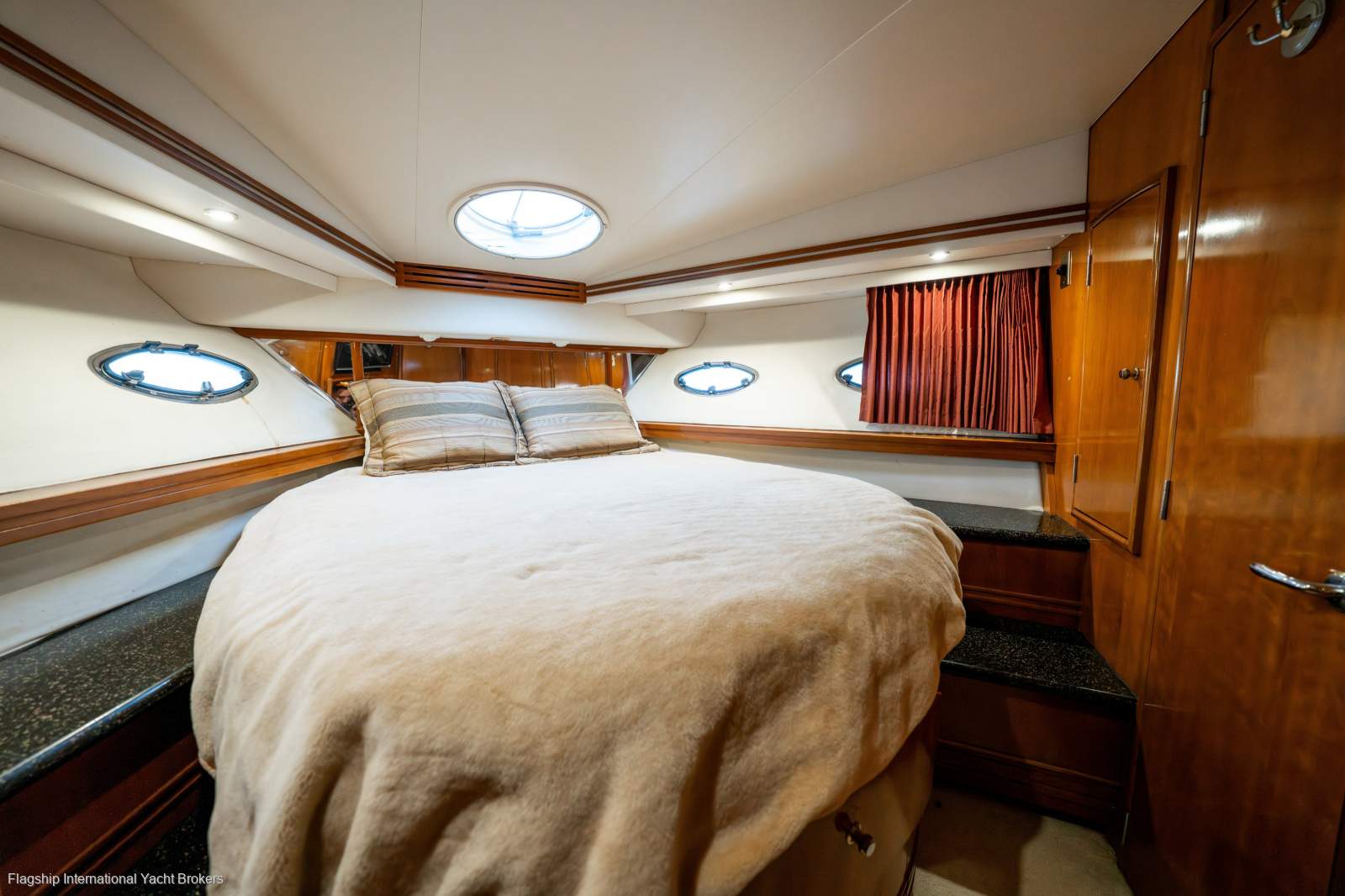

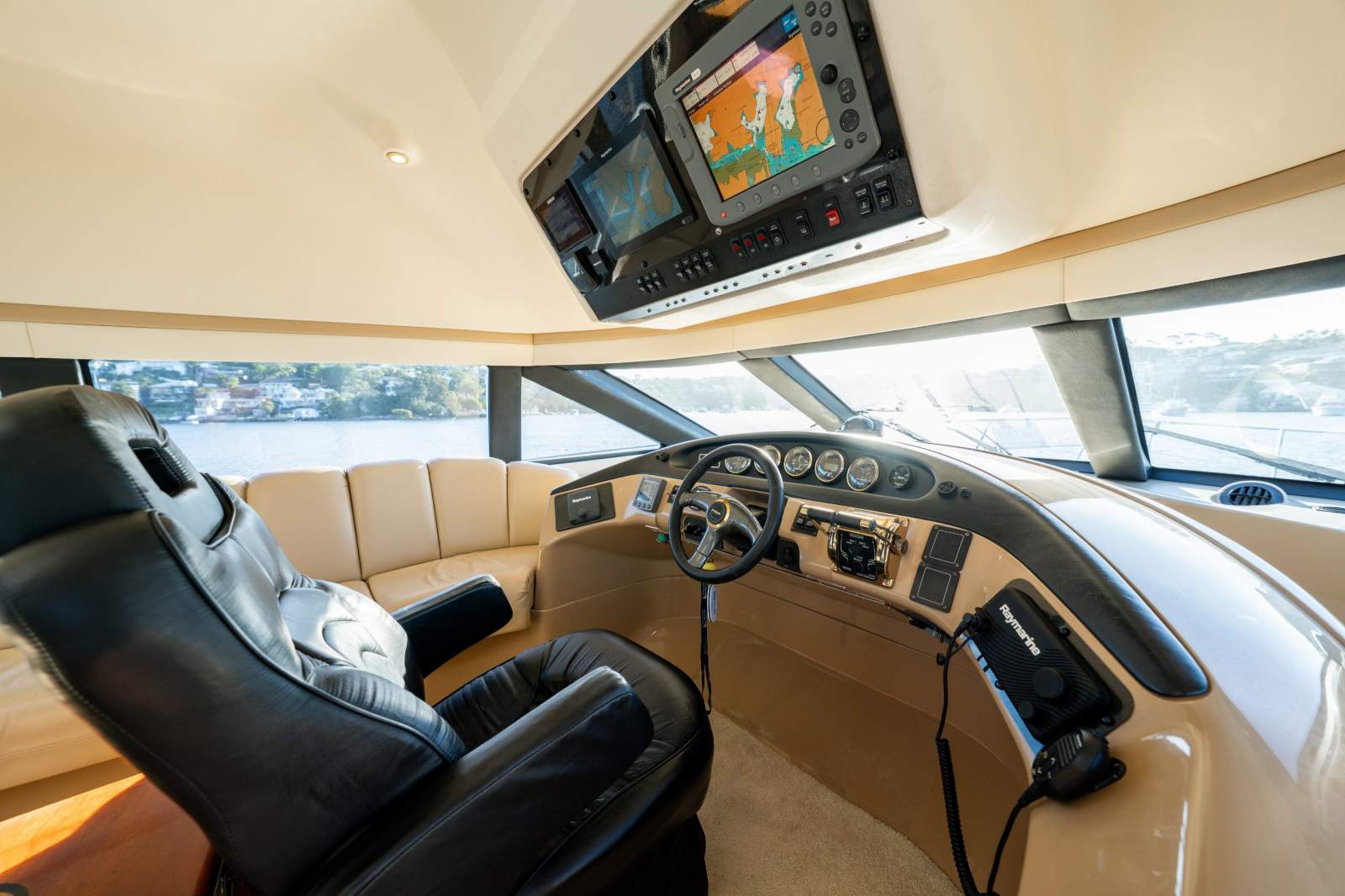

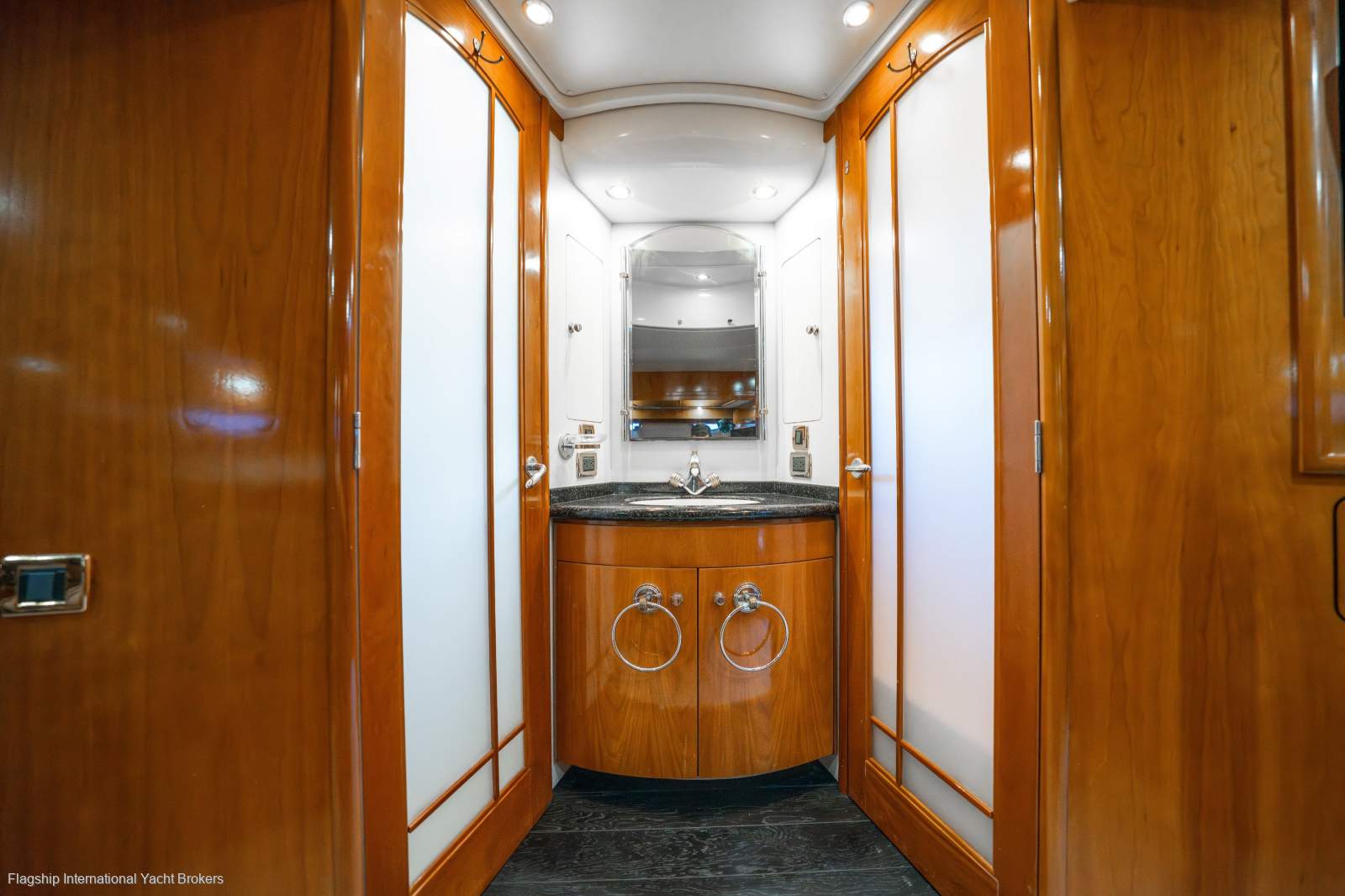

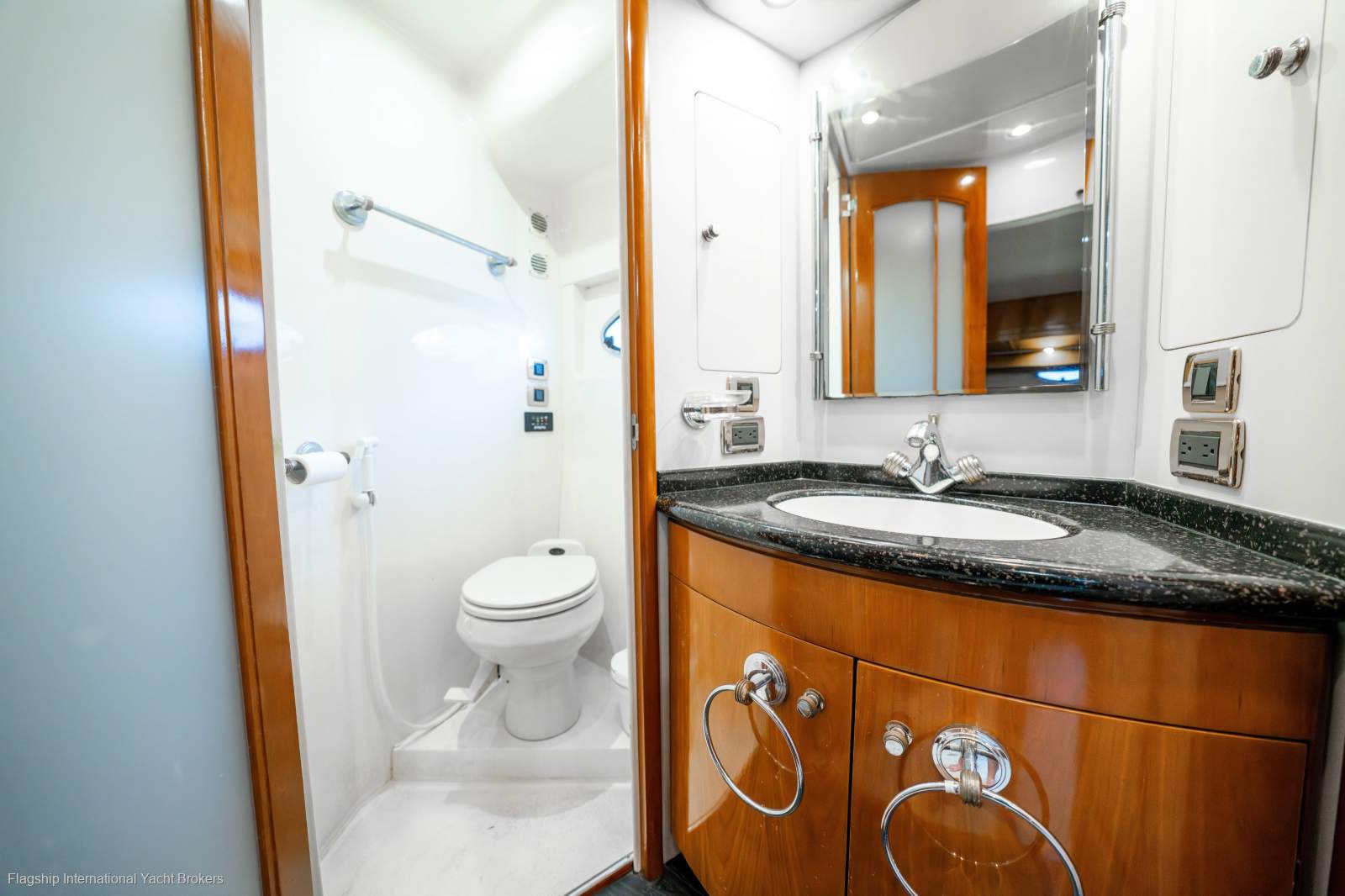

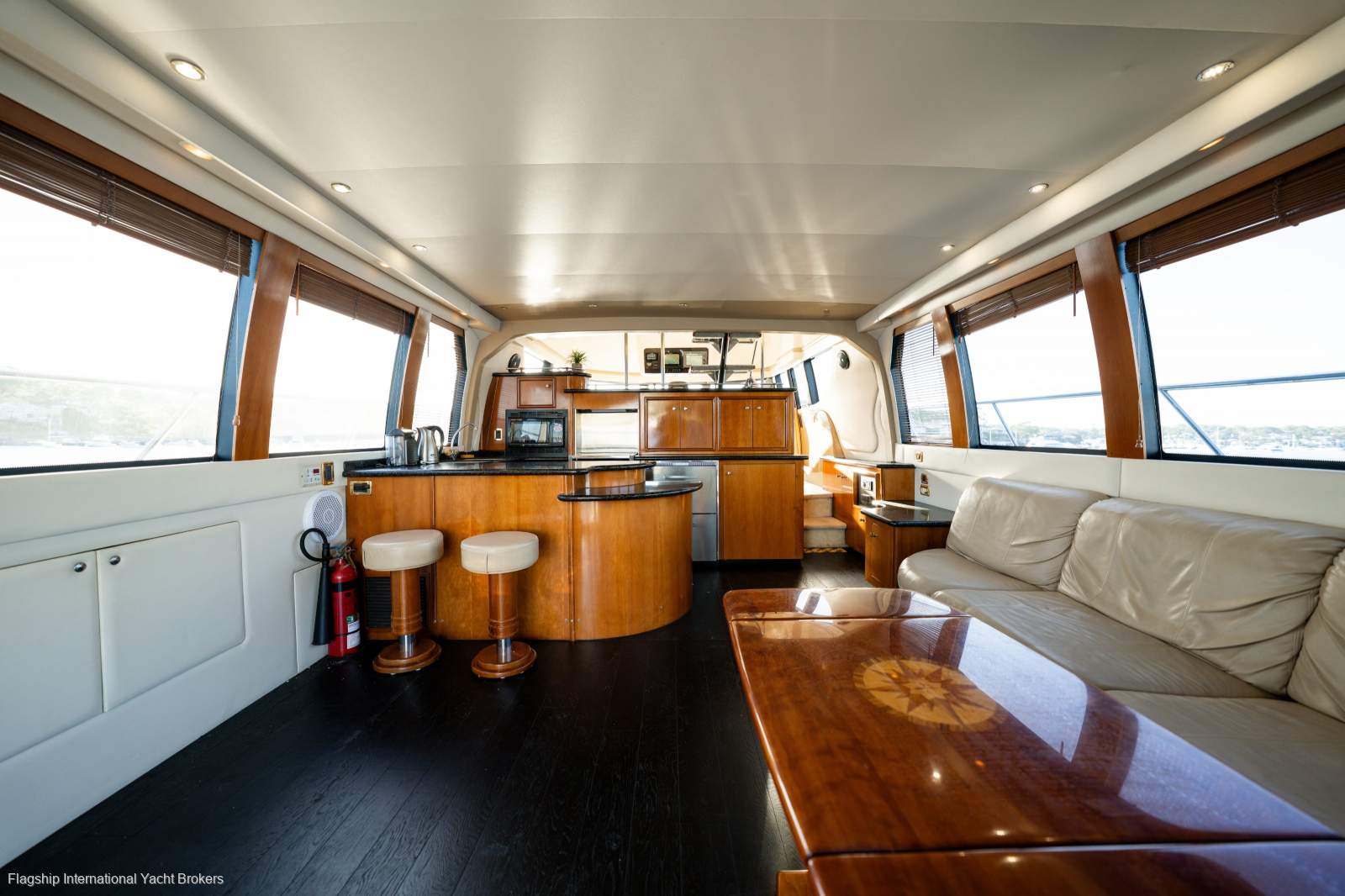

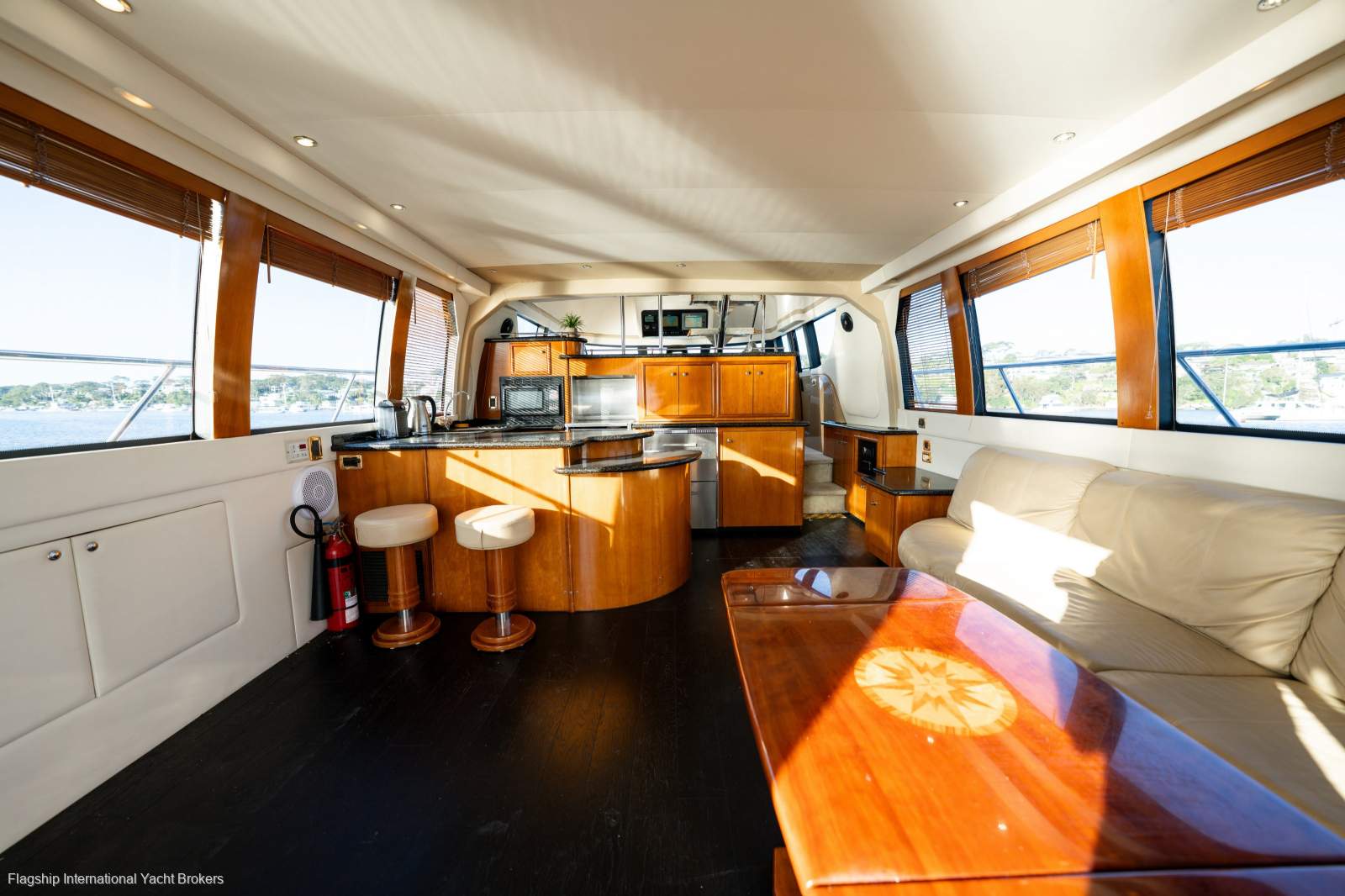

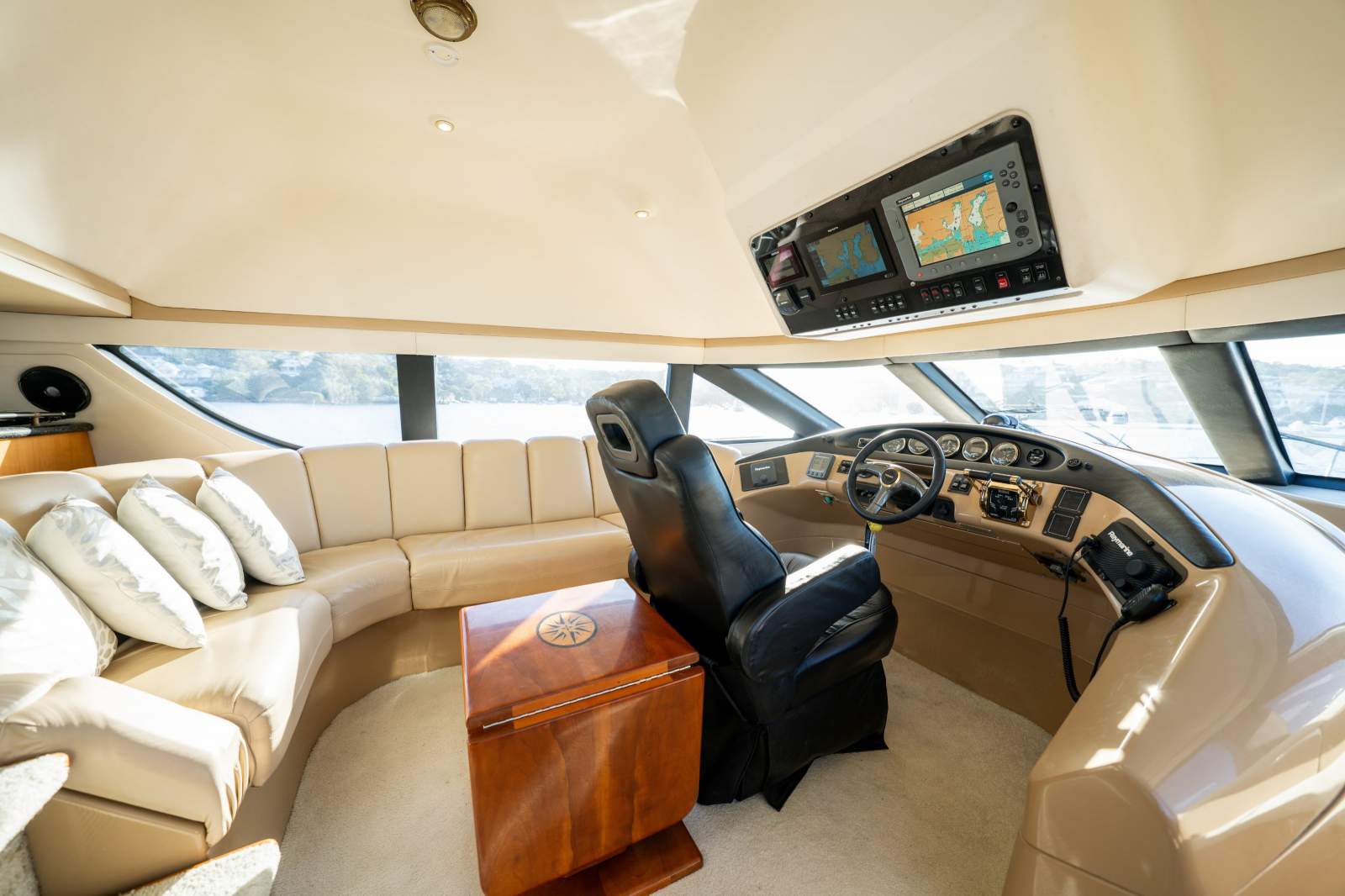

Inside, warm cherry joinery frames a raised pilothouse with Raymarine hybrid-touch navigation, FLIR night vision, Simrad sounder and Fusion audio. The galley sits one step aft, fitted with twin drawer fridges, a three-burner electric cooktop with oven, Sharp convection microwave and deep double sink. Three air-conditioned cabins sleep six in comfort: a full-beam master with washer-dryer and en-suite bath, a forward island double and a twin cabin sharing a second Vaccuflush head with stall shower. Fresh water comes from twin 400 L tanks and a Schenker 60 L /hr water-maker, with hot water supplied by a Rheem system.
If you're seeking a pilothouse cruiser equally at home on a quick dash to Pittwater or a run north to the Whitsundays, this Carver merits a personal inspection.
Contact Flagship to arrange your private inspection.

Specifications

Make & Model: Carver 570 Pilothouse Cruiser

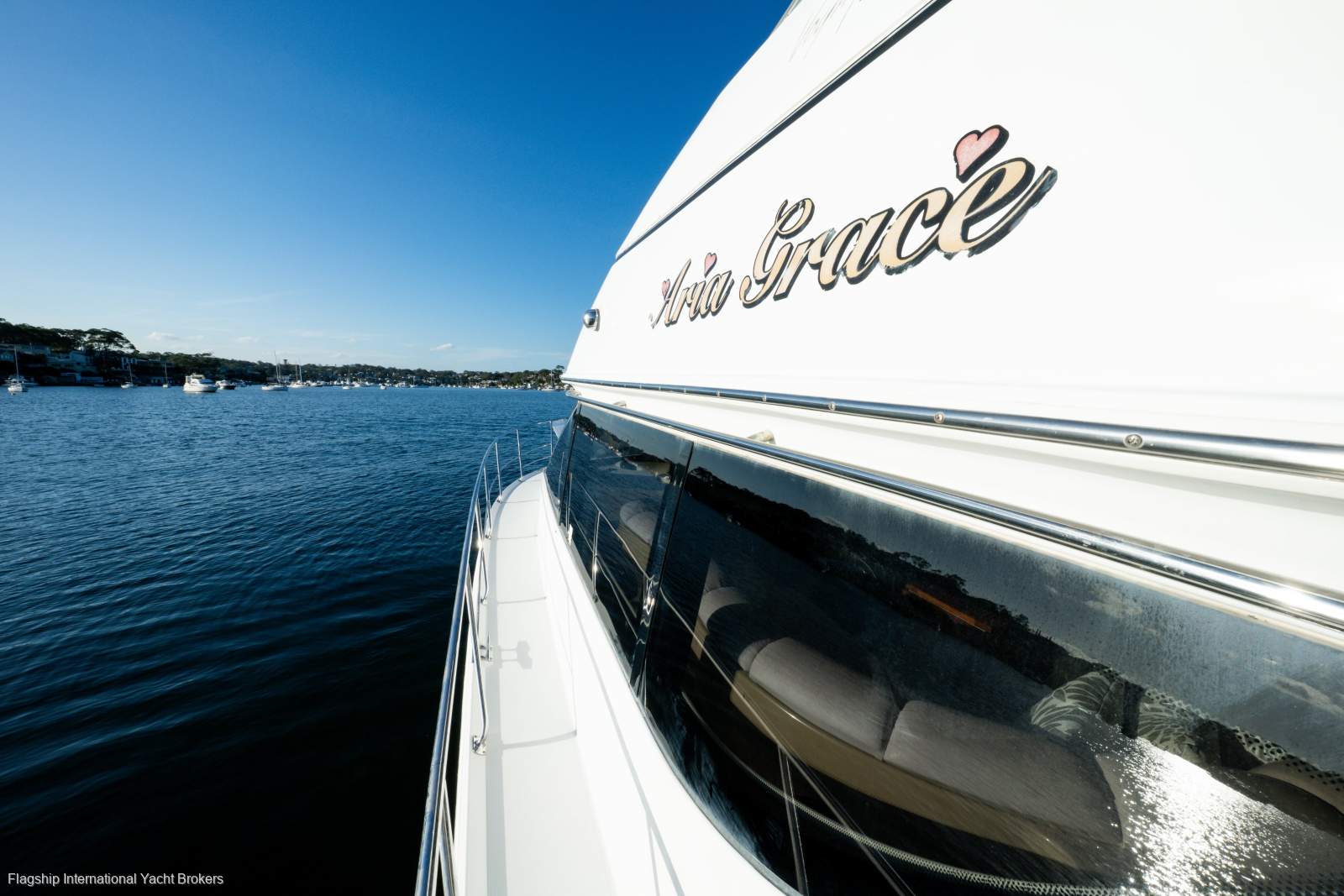

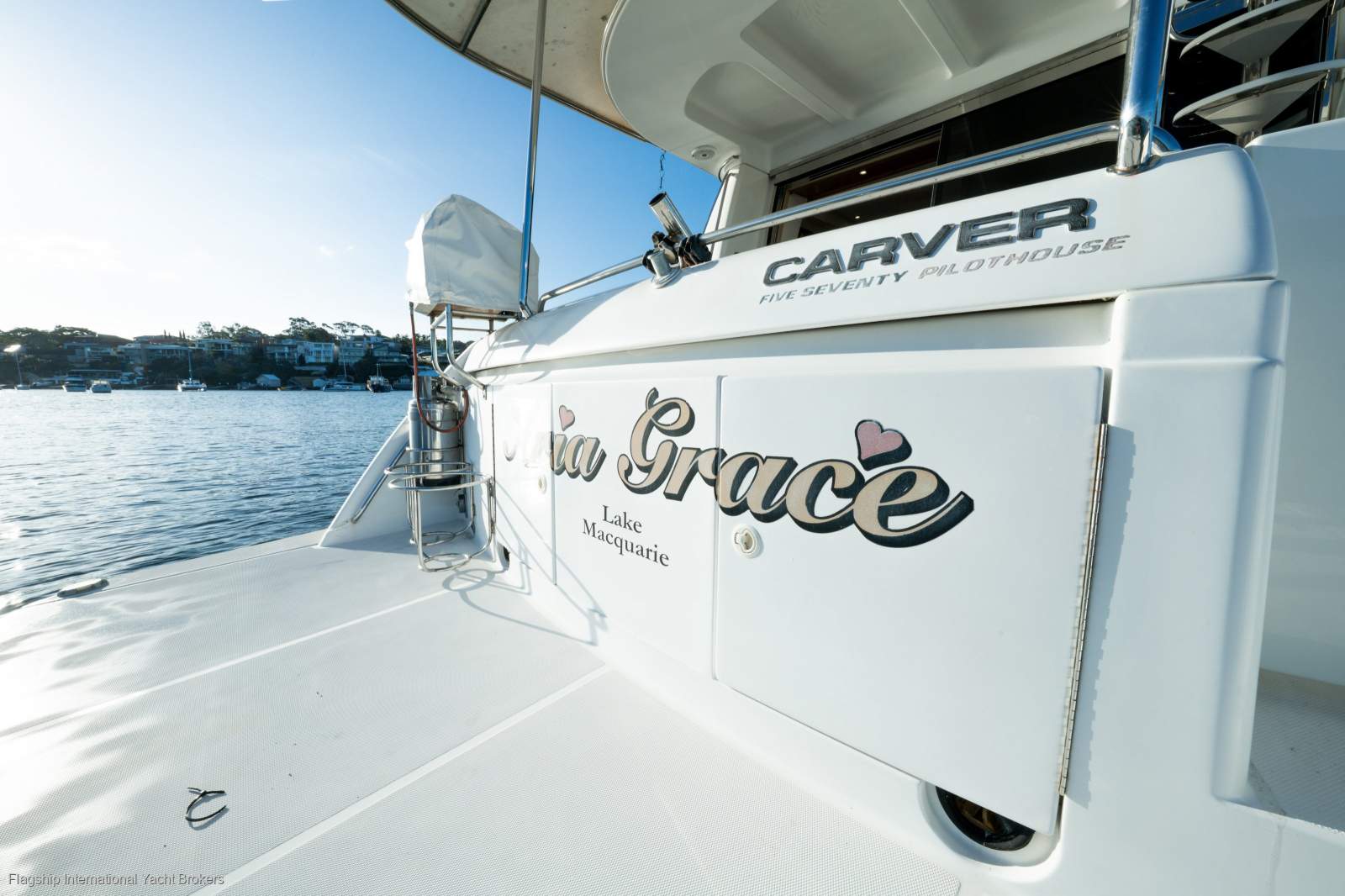

Vessel Name: Aria Grace

Length: 17.37

Year: 2000

Location: Rose Bay NSW

Country: New South Wales

Decks Material: GRP with non skid pattern in the gel coat

Hull Material: Fibreglass/GRP

Engine: Two Cummins model no M18QTA 535 horsepower turbocharged Diesel engines Port serial no 35018397 with 2074 hours and Starboard serial no 35018692 with 2157 hours both dated 09/00 they are both well maintained and start up instantly. They have stainless steel Exhaust elbows with sea water injection through fibreglass exhaust pipes and mufflers with reinforced rubber elbows. The system is very well constructed and is in good condition. The engines are cooled by recirculating fresh water through a heat exchanger which has seawater running through the other side. All the pumps and equipment are in good condition and well maintained.

Fuel Capacity: 3000 litres in two aluminium tanks

Beam: 4.6m

Draft: 1.5m

Weight: 23,813 KG

Outboard: Yamaha 25 hp four stroke outboard model F25lc serial no 1022779

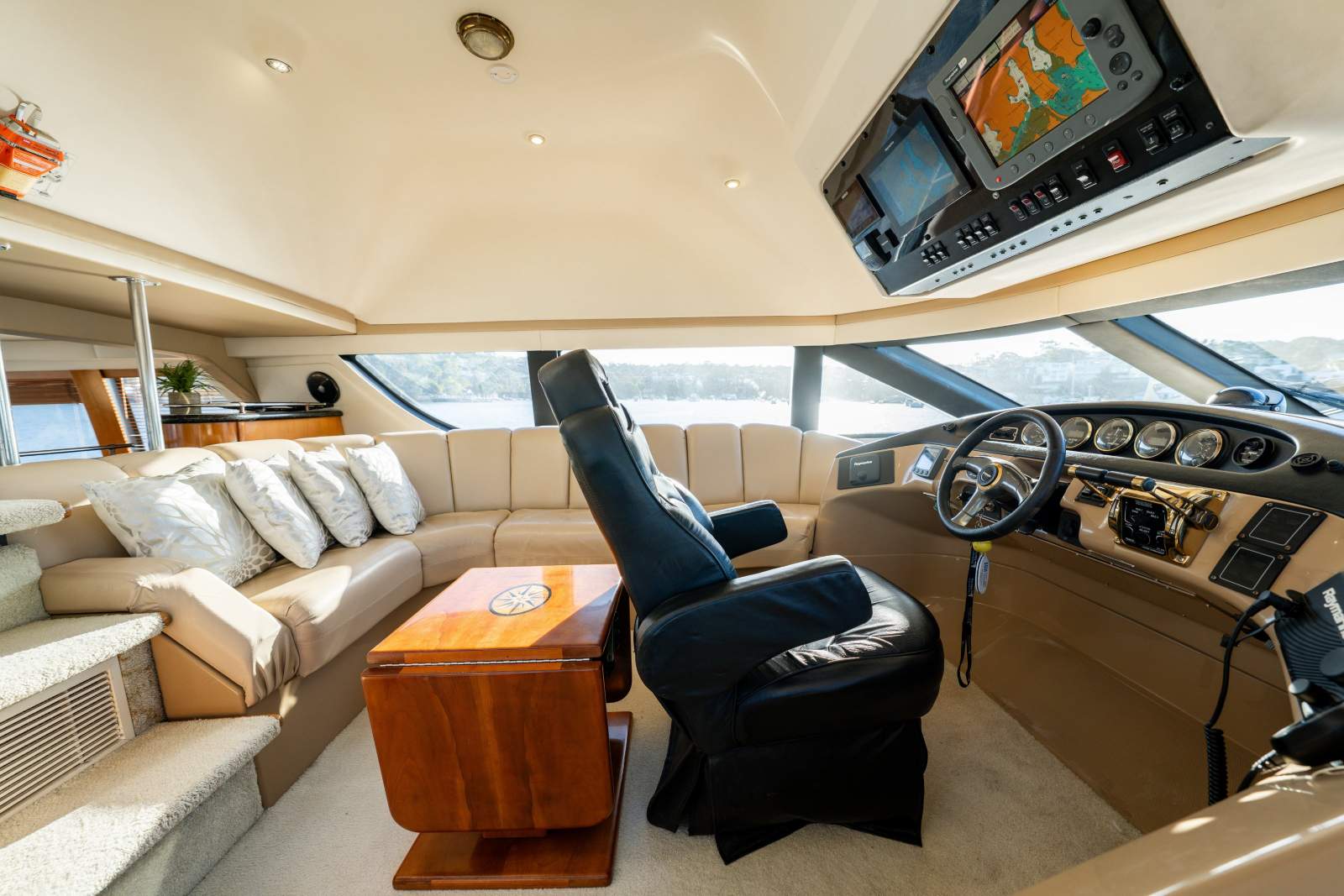

Covers: Yes with Helm station and lots of seating in good condition with a revolving electric seat, full instrumentation for operating the boat and a fridge and sink with a icebox storage area, a large table and clears and covers in good condition.

Ground Tackle: Good, adequate space for ground tackle self draining. Yes, Maxwell P19045 12 volt operated from helm or deck switches, works well.

Safety Gear: PFD 21 x standard12 under fwd bunk and 9 under flybridge seating

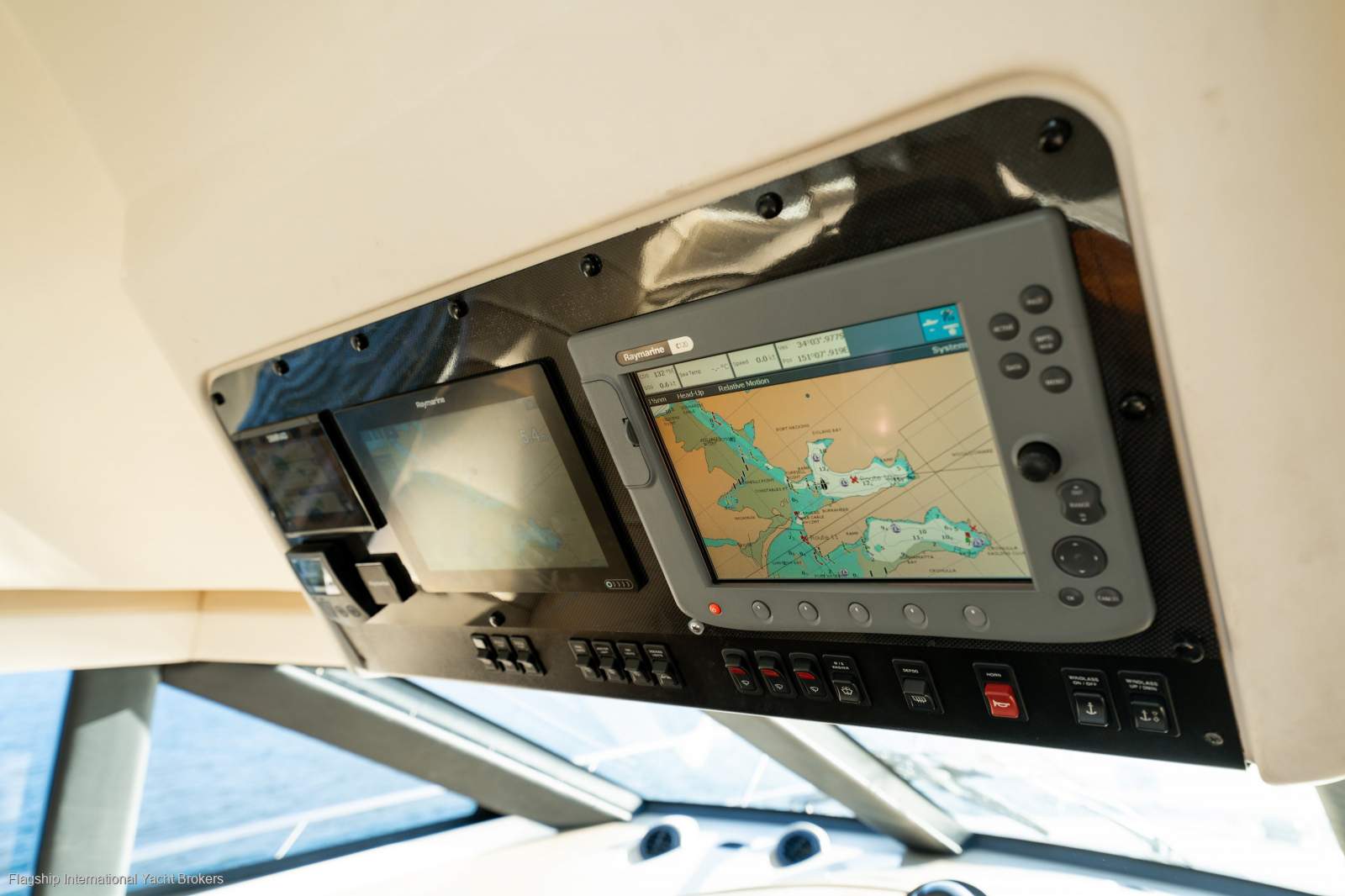

Electrics: Radar Raymarine GPS Raymarine Hybrid touch screen "Skipper" Radar/plotter/cameras/sonar/ sounder/ fish finder And a older Raymarine C129 plotter at pilot helm and flybridge. Sounder Simrad sounder and bottom chart Chain counter Muir Instruments. Raymarine ST60 Tridata multi display with speed, depth and sea temperature. Cameras There is a infra red "FLIR"camera on the flybridge, there is a camera in the cockpit (for reversing) and there are cameras in the engine room. They can be viewed on the Raymarine hybrid screen at the pilot house helm VHF Radio Raymarine VHF DSC. Raytheon DSC VHF on flybridge Stereo AM/FM Radio Bluetooth Fusion Brand MSNRX 200 Spotlight One on bow rail and a LED one on the flybridge and a hand held

Electronics: Autopilot Raymarine ST Compass Magnetic steering compass, plus fluxgate for autopilot Log Raymarine st60. Antennae yes for VHF, GPS and a radar transmitter Barometer Yes and a tide gauge Smoke/Carbon monoxide alarms. Yes both. In every cabin Engine instruments yes comprehensive and rudder indicators Wipers yes x 3

Engine Make: Cummins

Fuel Type: Diesel

Number Engines: 2

Engine Hours: 2,115 Hrs

Engine Hours2: 2,196 Hrs

Propulsion: 2x Cummins turbocharged Diesel engines driving four bladed bronze propellors

Thrusters: Yes, Q brand works well

Entertainment: 1x Fusion stereo system in the saloon, with repeaters in the cockpit and on the flybridge and numerous speakers around the boat. There is a LG LED Tv with DVD player in the saloon and a Grundig led television and DVD in the forward cabin and the master cabin. There is also a Aiwa stereo CD player system in the master cabin

Air Conditioning: Yes, 3 systems, one in saloon area, one in master cabin and one in forward cabin, all tested OK, th

Freezer: Yes, in fridge

Stove: Yes 240 V Princess electric range 3 hot plate with oven and grill working tested

Water Maker: Room Zen schenker water maker - 60 litres per hour approx in aft engine room

Hot Water System: Yes, 240 volt Rheem

Bilge Pumps: Yes

Life Raft: No

Epirb: GME Expiry 2015

Life Jackets: Not sighted

Fire Protection: Yes, x 5 hand held suitable 3.5 KG

Registration Number: AFE 474N
